Fortress

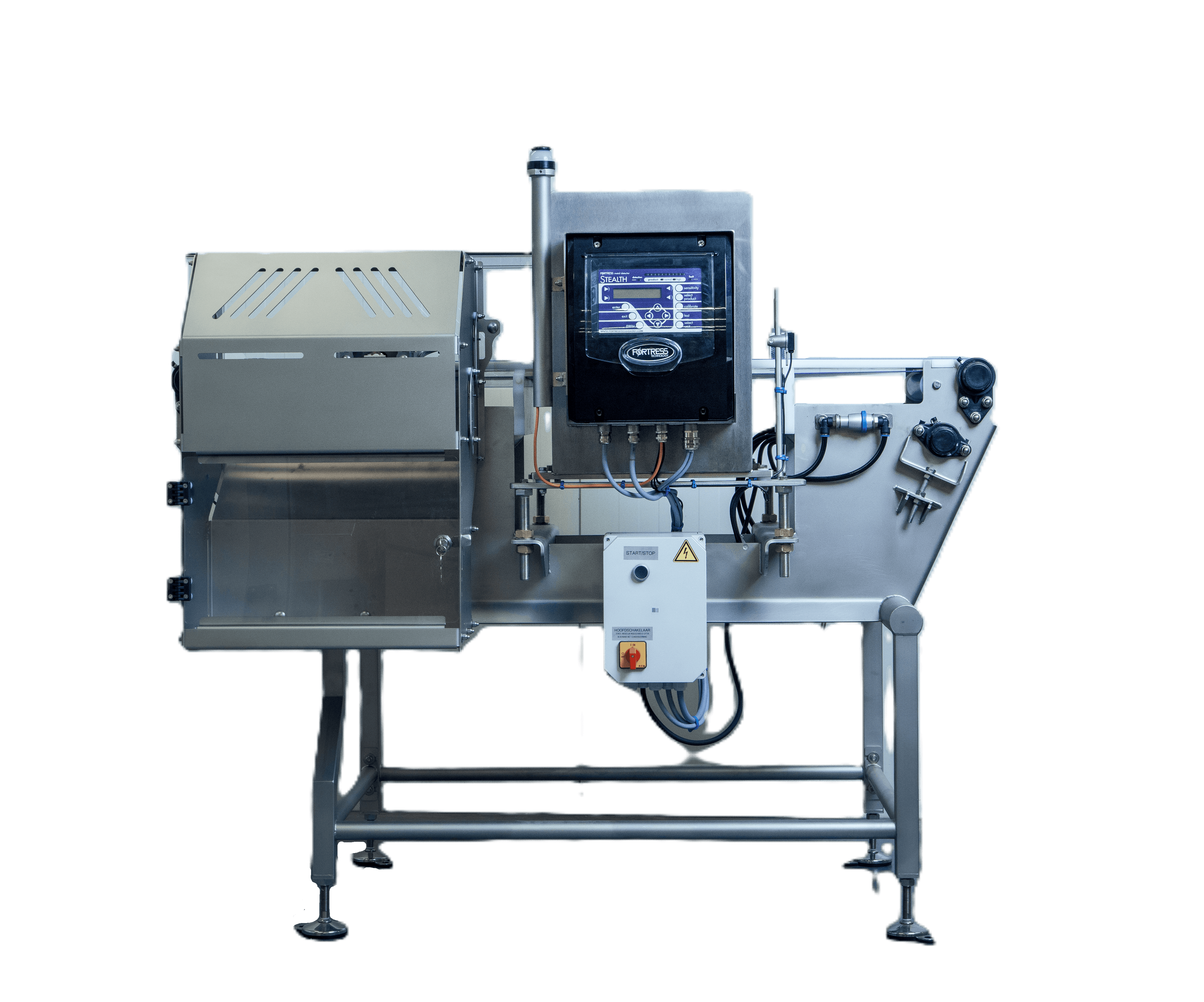

FORTRESS belt metal detector

For detecting and removing metal on a conveyor belt
For a conveyor belt design
Wide selection of diameter dimensions
Available in stainless steel or aluminium
Suitable for bread, meat, chicken, fish, meals and many other products.
Request a quoteView brochure
none provided

Description

FORTRESS belt metal detectors use the very latest digital technology to detect and remove ferrous and non-ferrous metals, including stainless steel. FORTRESS belt metal detectors are available in aluminium or stainless steel with a wide selection of opening sizes and have a robust construction to cope with even the heaviest applications. The BSH extra robust housing, certified according to IP69K is used for extra stability and improved performance in wet conditions.

Stealth and Interceptor models

The Fortress Stealth metal detector is the standard model suitable for most standard situations. For more detection strength Fortress supplies the Interceptor models, with the Interceptor DF for the detection of ultra-thin contaminants that are often encountered in processing lines. This model was developed with a divergent field technology, which is the world’s first metal detector to use multiple field directions. This greatly improves the detection of ultra-thin contaminants with detection levels on par with the latest X-Ray systems in some applications.

Jansen combination

FORTRESS belt metal detectors can be supplied including the Jansen Techniek transport system (with or without reject system), but can also be integrated into existing conveyor belts or supplied as loose detector head.

Use cases

none providedBakery
none providedConvenience
none providedFish
none providedFruit & vegetables
none providedMeat
none providedPoultry
none provided

Questions? Ask Taeke

Do you have a specific question about the FORTRESS belt metal detector or would you like advice? I am happy to help you.

+31 (0)6 2649 6610
tdouma@jansencontrolsystems.nl

Features of this machine

Automatic balancing

Automatic calibration

A spacious memory menu for saving product specifications.

Serial interface for saving data on the computer (excluding Contact software)

Modular exchangeable electronics

Automatic test procedure

Water and dust resistant (IP69K). No sealant edges, welded all the way around.

Specifications

ConstructionLacquered epoxy aluminium or stainless steel 304
Dimensions (W X H)Diameter width: 25 – 1525mm x diameter height: 25 - 635mm (special sizes available)
Detector stateHorizontal or vertical
ProtectionIP 65 aluminium / IP69K / Nema 4X (stainless steel with BSH)
Power230V
CommunicationRS485 / Optional: Ethernet/wireless
AlarmSound signal / warning light
OptionsSeparate display / Portable display / Ejection system / Contact Software
Display typeStandard Stealth / Optional Interceptor
Fortress

About Fortress

Jansen Control Systems has been supplying Fortress metal detectors in the Netherlands and Belgium for many years. Fortress metal detectors are manufactured in Britain and are renowned for their superior speed, precision and user-friendliness. They use the very latest digital technology to detect and remove ferrous and non-ferrous metals, including stainless steel. Feel free to get in touch with us for advice on Fortress metal detectors.
