Jansen Techniek

FD Descaler

For whole fish, stripped salmon and trout
No damage to the fish
Up to 25 fish per minute with a double design
Machine also effectively removes mucus and bacteria
Request a quoteView brochure
none provided

Description

The FD15 and FD25 descalers are designed for descaling whole fish, stripped salmon and trout. The FD descaler removes the scales from fish using a high pressure water system. The use of water ensures the most efficient result, as the scales are removed without any damage to the meat. In addition to the scales, the machine also effectively removes mucus and bacteria such as salmonella listeria from the fish.

How the descaler works

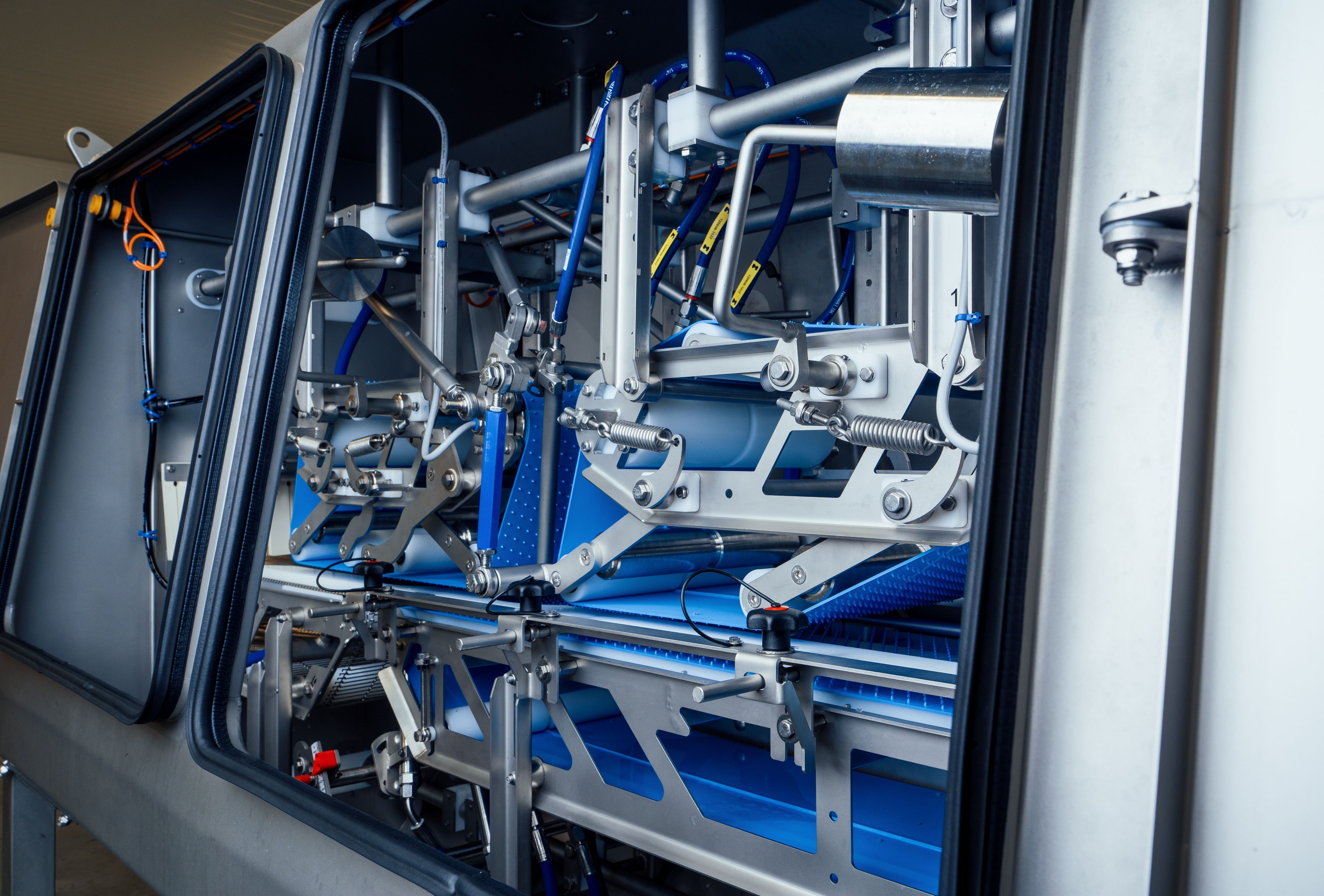

The fish is fed into the descaler and kept in place by side guides and upper and lower belts. Flat air nozzles remove the scales and mucus from the fish. No water is circulated during the process, resulting in a low bacterial cleaning process.

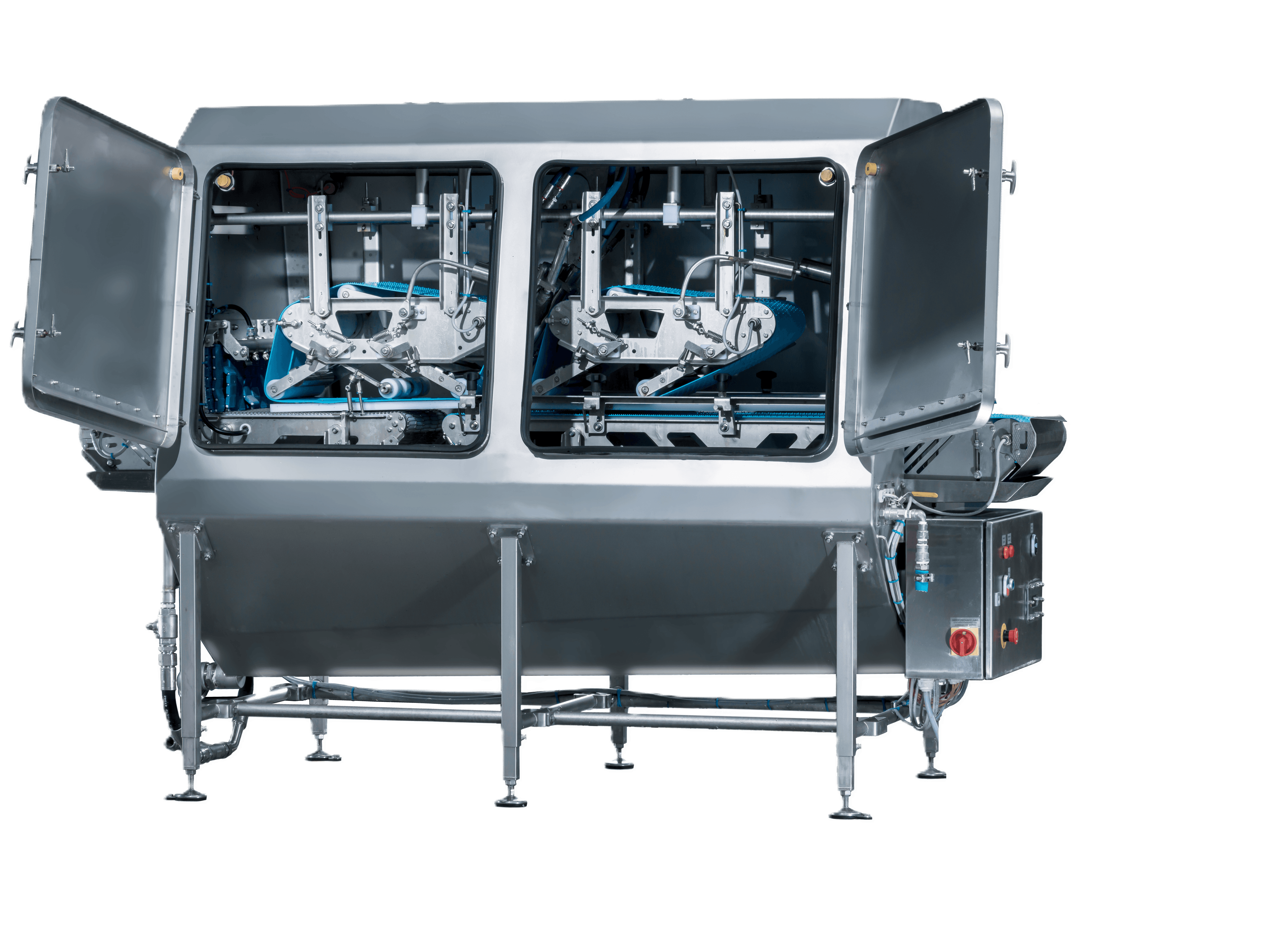

Robust design

The FD descaler has a hygienic design. It features an open construction with doors that can be opened to clean the machine effectively under high pressure. This prevents bacteria from building up on the surface of the machine. A further advantage offered by the doors is that plenty of light reaches the machine during cleaning. The machine features a control cabinet, and the height of the machine can be adjusted as the customer wishes.

none provided

Use cases

none providedFish
none provided

Questions? Ask Corwin

Do you have a specific question about the FD Descaler or would you like advice? I am happy to help you.

+31 6 519 60 111
cvandenbor@jansentechniek.nl
Machine guide
Video thumbnail
EXPLANATION VIDEO

Features of this machine

For the removal of scales, mucus and bacteria

No damage to the fish

Available as single and double version

14 to 25 fish per minute

Specifications

Number of operators1
CapacityFD15: 14-16 fish/min | FD25:up to 25 fish/min
Dimensions (LxWxH)± 2.980/3.800 x 1.100 x 1.700mm
Fish sizesTo be agreed upon
ConstructionSS 316 / HMPE
IP RatingIP67K
Power Supply3 x 400/230 V + PE, IB = FD15: 42A, FD25: 62A
Water consumptionFD15: ± 50l, 80 bar | FD25: ± 100l, 120 bar
Water connection3/4” / 3 bar
