FFG Flat Fish Gutting Machine

The new way of stripping plaice and other flat fish
80 fish per minute
Longer shelf life for fish
Constructed for work at sea
Request a quoteView brochure
none provided

Description

The FFG Flat Fish Gutting machine is a ground-breaking machine for automatically stripping freshly-caught plaice. An experienced fisherman can strip an average of 10 to 15 plaice per minute by hand. With the FFG Flat Fish Gutting machine, 2 fishermen can process up to 80 plaice per minute. This is several times faster. In addition, a major advantage of the Flat Fish Gutting machine is that everyone can achieve the same result. It is highly user friendly and precise.

This is how it works

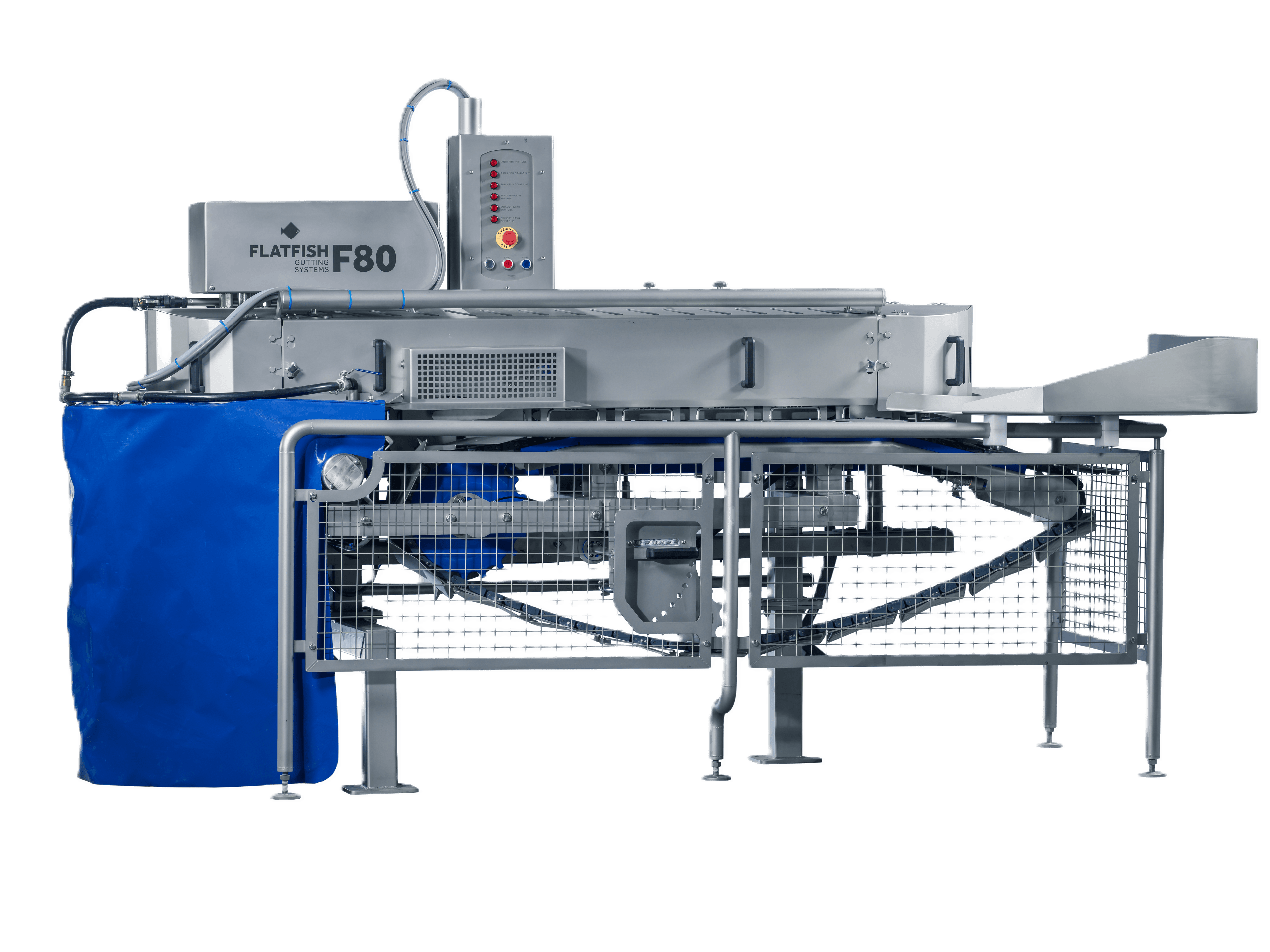

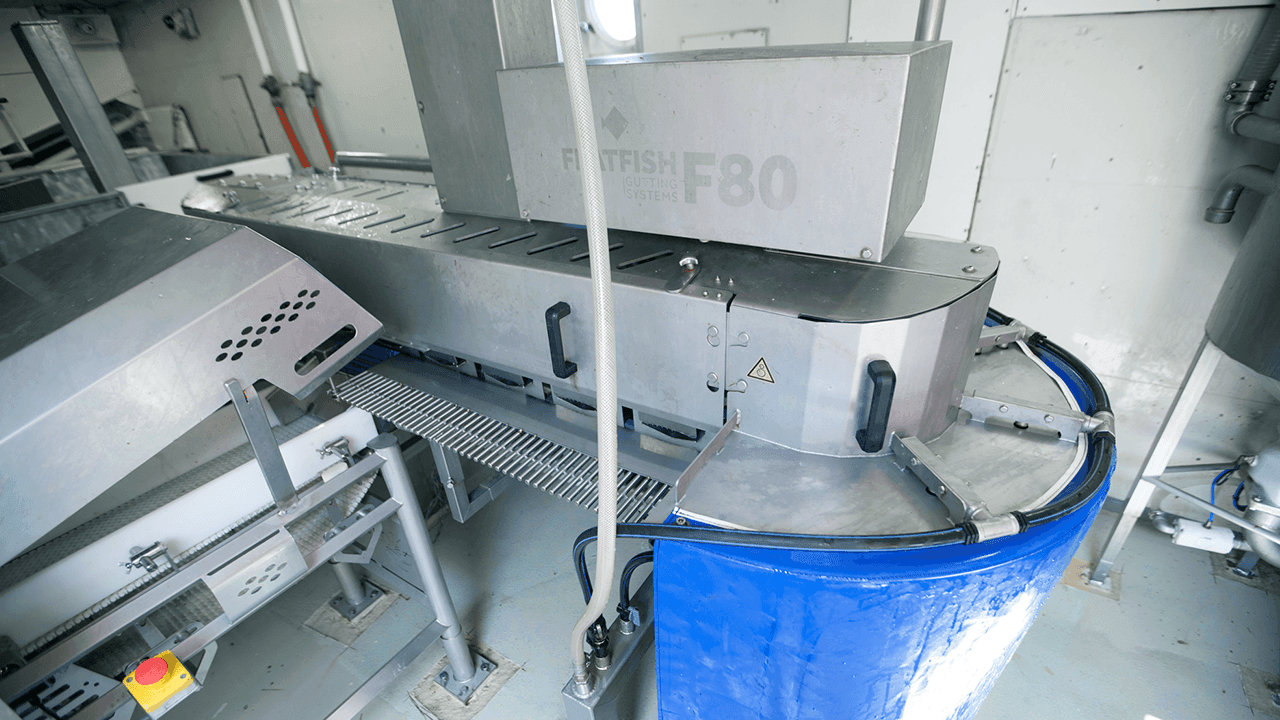

The Flat Fish Gutting machine consists of a revolving oval carousel with a number of product positions on top. One or multiple people add the plaice to the product holders. In addition, the fish is secured into place with a specially designed clamp and moved to the protected part of the Flat Fish Gutting machine, where it is stripped in the right position and sucked empty. Finally, the stripped plaice is tidily rinsed clean and unloaded to prepare for sorting into classes 2, 3 or 4.

Important benefits

In addition to the fact that stripping the plaice with the Flat Fish Gutting machine is quicker, more consistent and less labour-intensive, an additional benefit is that the fish has a longer shelf life thanks to a lower germ count and the fact that filleting companies can get more return from the fish thanks to the uniform cut.

none provided

Use cases

none providedFish
none provided

Questions? Ask Thomas

Do you have a specific question about the FFG Flat Fish Gutting Machine or would you like advice? I am happy to help you.

+31 6 5194 6800
tvanrijn@jansentechniek.nl
Machine guide
Video thumbnail
EXPLANATION VIDEO

Features of this machine

Automatically stripping, rinsing and sorting

Designed for extreme conditions on board

A lower germ count ensures the fish has a better shelf life

80 fish per minute

Specifications

Nominal capacity80 fish / minute
Product classClass 2 to 4 / 270 – 410mm / 200-600 gram
Dimensionsapprox. 2,500 x 1,000mm
Weight814kg (total) Plaice stripper: 650kg / Side channel fan: 114kg / Vacuum tank and accessories: 50kg
ConstructionStainless steel 304 and HMPE
Power380V
Connection capacity5.5 - 11kW (depending on vacuum system)
Control boxEquipped with 3 frequency regulators for skin roll, protection switches and back-up systems in the event of disruption to one of the components.
Protection categoryIP67K
IncludingCyclone with vacuum pump
ExcludingRinse water connection
