Marelec

Marelec M3 Compact Grader

Weighing and grading small, vulnerable products
Compact grading system for weighing and grading
2 to 8 grading stations
Designed for small or vulnerable products such as fish fillet, poultry or meat
Request a quoteView brochure
none provided

Description

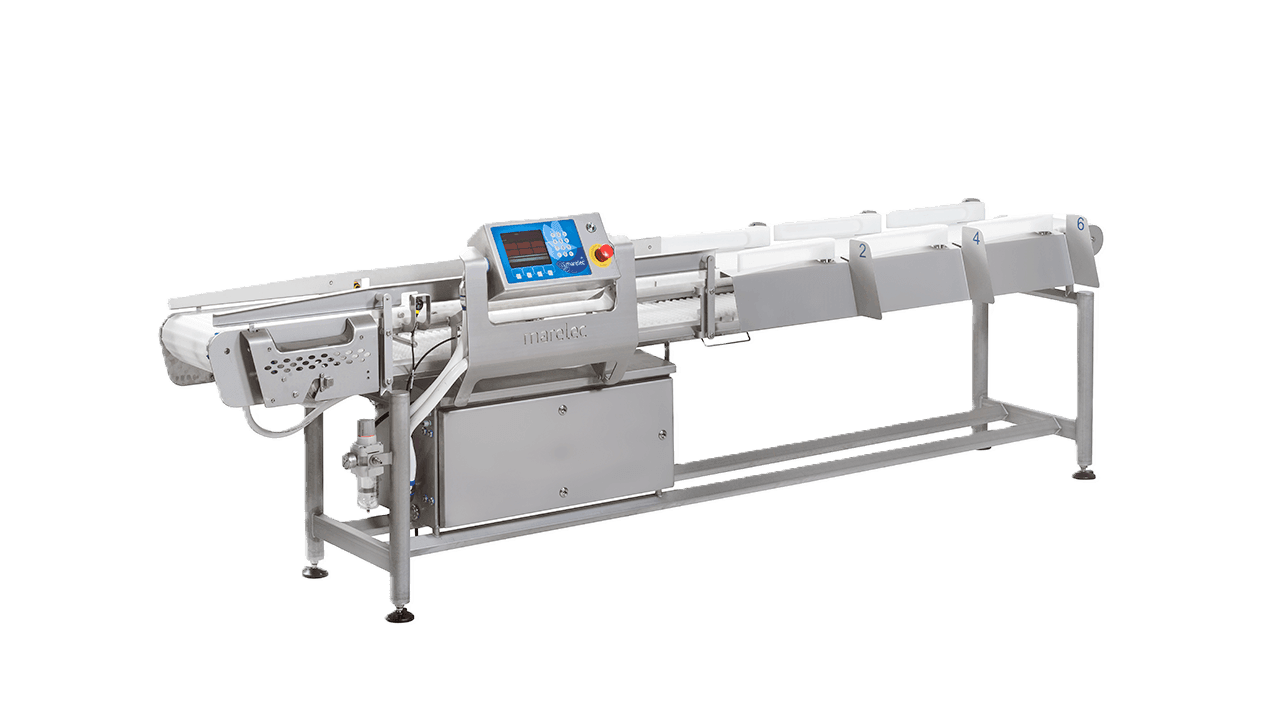

The Marelec M3 compact grading system is the ideal solution for weighing and grading small, vulnerable products such as fish fillet, poultry and meat. A gentle grading system in which the product slides from the belt ensures that the products are not damaged. Despite the compact format, the M3 provides the best performance and does not compromise on classic grading systems.

Custom compact grading system

The MARELEC M3 sets new standards for grading systems thanks to the various grading and outfeed possibilities:

- Available with 2 to 8 stations in the configuration you prefer (e.g. 3 outfeeds to the left and 3 outfeeds to the right, or 8 outfeeds one after the next on the left-hand side).

- Grading by weight and/or number

none provided

Use cases

none providedConvenience
none providedFish
none providedFruit & vegetables
none providedMeat
none providedPoultry
none provided

Questions? Ask Thomas

Do you have a specific question about the Marelec M3 Compact Grader or would you like advice? I am happy to help you.

+31 6 5194 6800
tvanrijn@jansentechniek.nl

Features of this machine

Ideal for small and vulnerable products

Gentle grading, no damage

2 to 8 grading stations

Compact grading system for weighing and grading

Specifications

Max. product size450 x 250 mm (alternative up to 600 x 450mm)
No. programs100
Number of grading stations2 - 8
Measuring range0 - 1.5 kg (alternatively: to 5 kg)
Standard deviation0-500g = 1.5g / 500-1500g = 3g
Max. speed120 units/minute
Protection categoryIP69 (measuring cell lP68)
GradingGrading according to size and number (optionally by weight)
ConstructionStainless steel 304 (thickness 3 mm), H-design, plastic (FDA)
Conveyor beltPolyethylene grid
Keyboard selectionlP67 stainless steel with integrated electronics
IndicatorMARELEC Z2 with UTP/IP connection / stainless steel IP67 with integrated electronics
PowerSingle-phase 230VAC / 50Hz / 800W
Air supply200Nl / min / 6bar
SoftwareIntelligent Batching Software MARELEC G1
