Marelec

Marelec MC Grading System

Infeed, grading and weighing.
Up to 24 grading stations
Weighing from 10g to 20kg
Leading options for infeed, dosing and grading.
Request a quoteView brochure
none provided

Description

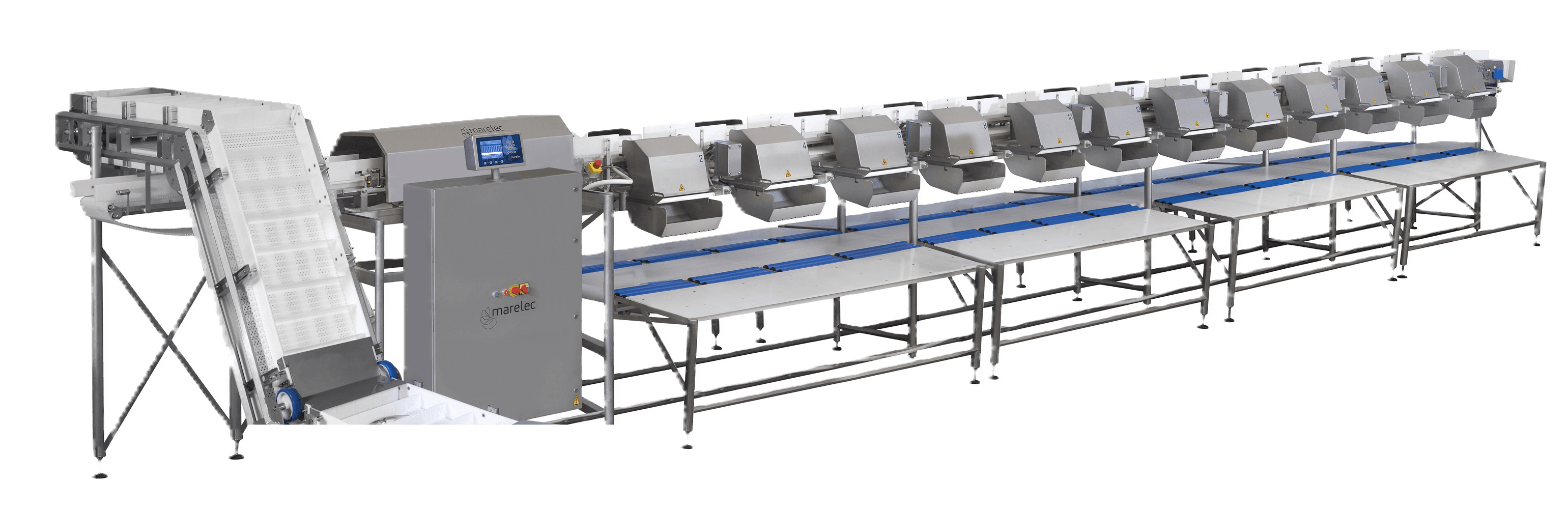

A MARELEC MC grading system consists of an infeed conveyor, a dynamic weigher and a grading belt. This MARELEC solution is leading in the sector thanks to the various infeed, dosing and grading possibilities.

Flexible Grading System

The robust construction and high levels of reliability mean that a MARELEC system requires significantly less maintenance than other machines. If the product properties change, the MARELEC MC Grading System can quickly and easily adapt, and works highly precisely without any added effort. This results in a higher return, improved product quality, higher profitability and ultimately a short payback period.

Jansen and Marelec

Jansen Techniek supplies, installs and maintains MARELEC systems in the Netherlands. We can integrate the grading system into your current production line, but also offer it as part of an overall solution.

none provided

Use cases

none providedFish
none providedPoultry
none providedMeat
none providedConvenience
none providedFruit & vegetables
none provided

Questions? Ask Thomas

Do you have a specific question about the Marelec MC Grading System or would you like advice? I am happy to help you.

+31 6 5194 6800
tvanrijn@jansentechniek.nl
Machine guide
Video thumbnail
EXPLANATION VIDEO

Features of this machine

Up to 24 grading stations

Suitable for whole products (fish, chicken)

Weighing from 10g to 20kg

Leading options for infeed, dosing and grading.

Robust construction with low maintenance

Flexible in the event of changing product properties

Specifications

No. programs999
Number of grading stations1 - 24 Single and double line
Measuring range10g - 20 kg
PrecisionTo be secured according to weighing range
Maximum speedUp to 240 units per minute (depending on product size)
ProtectionIP68 Fully waterproof
ConstructionStainless steel 304 and 316 / plastic (FDA)
Conveyor beltPolyethylene grid
IndicatorMarelec Z2 with UTP-I/IP connection
Air supply6-bar, flow rate depends on configuration
SoftwareAuto calibration and auto zero point, smart batching software
OptionsDesign in stainless steel 316L / Weighing bins at output / Marelec label printers / Marelec production management software
Marelec

About Marelec

Jansen Techniek represents Marelec Food Technologies in the Netherlands. This Belgian manufacturer of top quality portioning, sorting and weighing systems has been active in the food processing industry since 1983 and has been supplying machines in over 30 countries worldwide. Jansen Techniek supplies, installs and maintains Marelec systems in the Netherlands.
