Sustainable Machines

Marelec MC Grading System

Infeed, grading and weighing.
Watch the video
1 - 24 grading stations
In a single or double-sided setup
Up to 240 pieces/minute
Depending on product size
Range of grading possibilities
With or without batching

Description

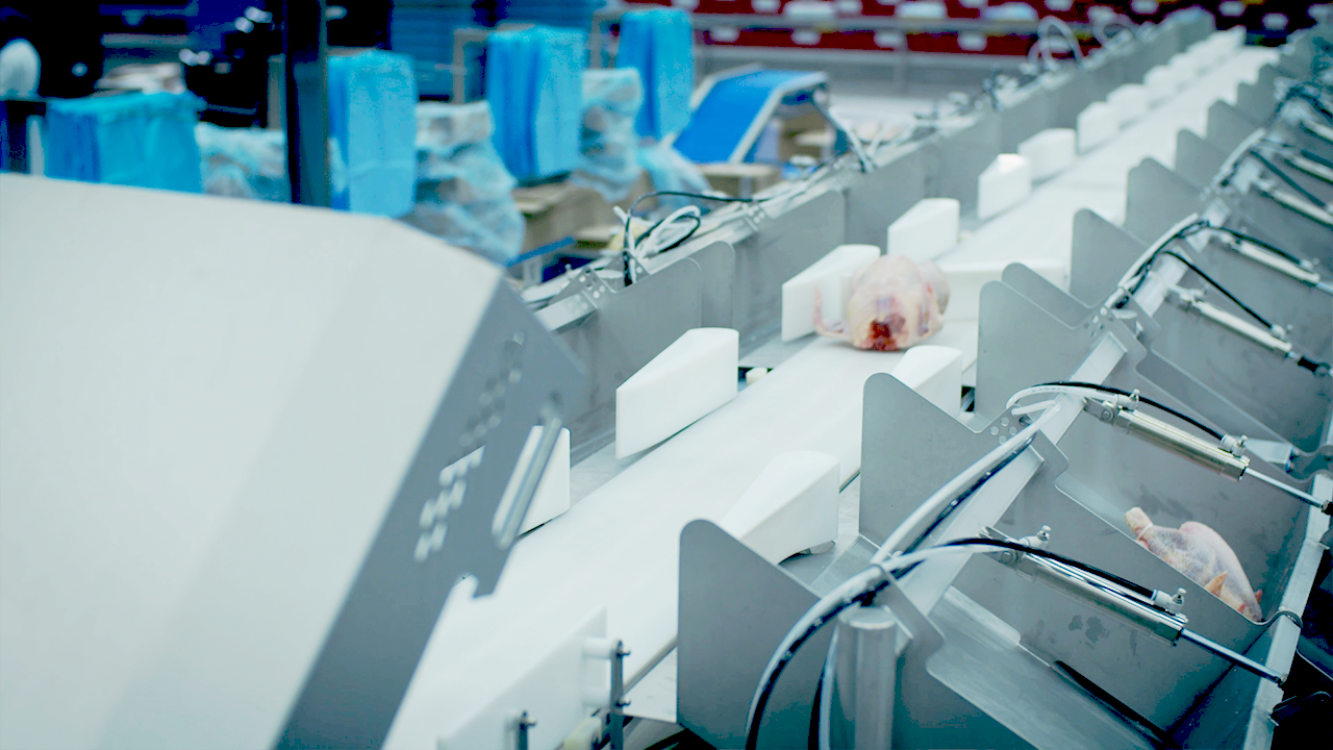

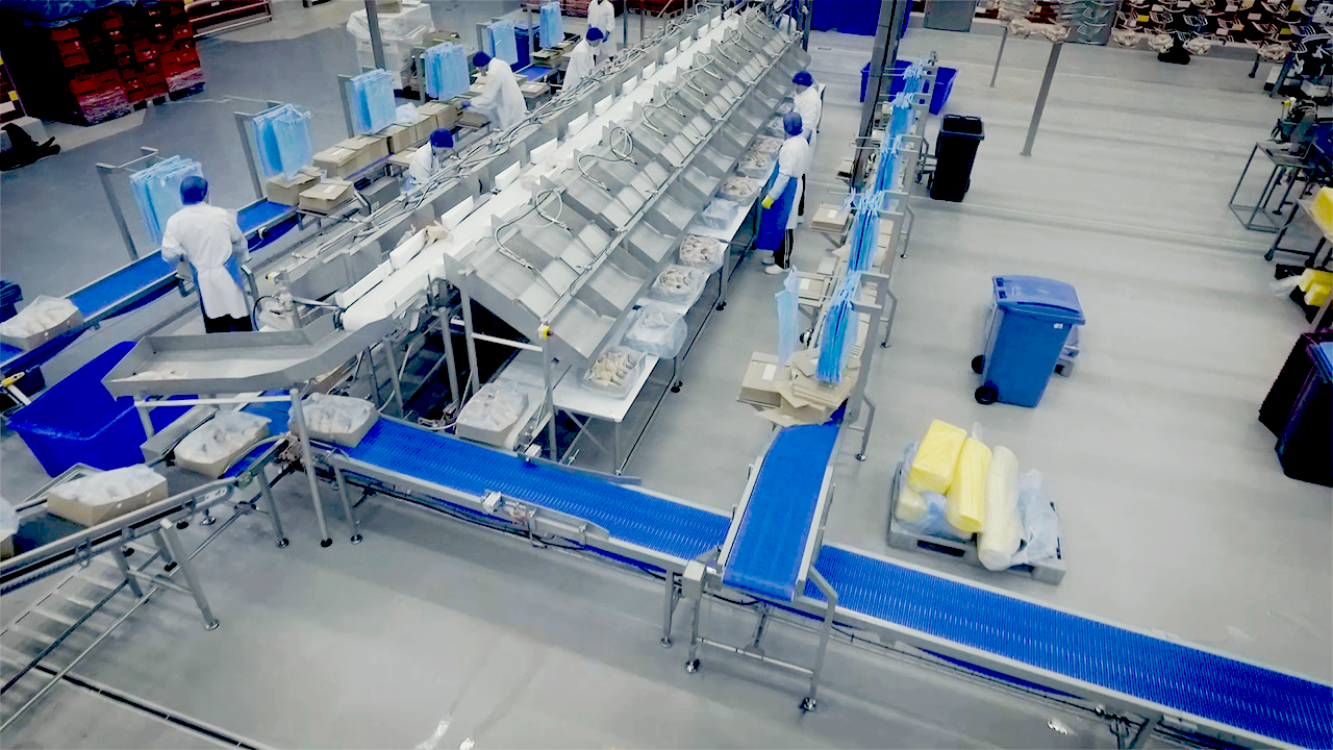

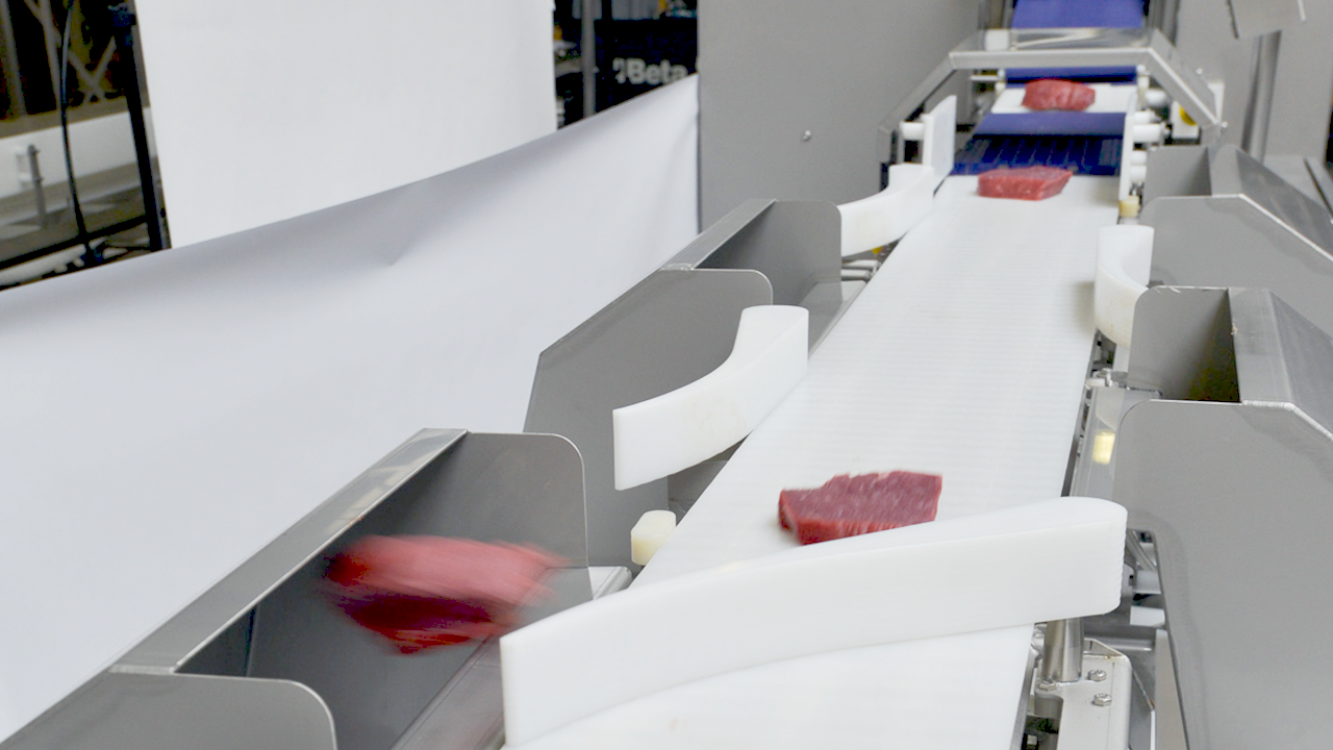

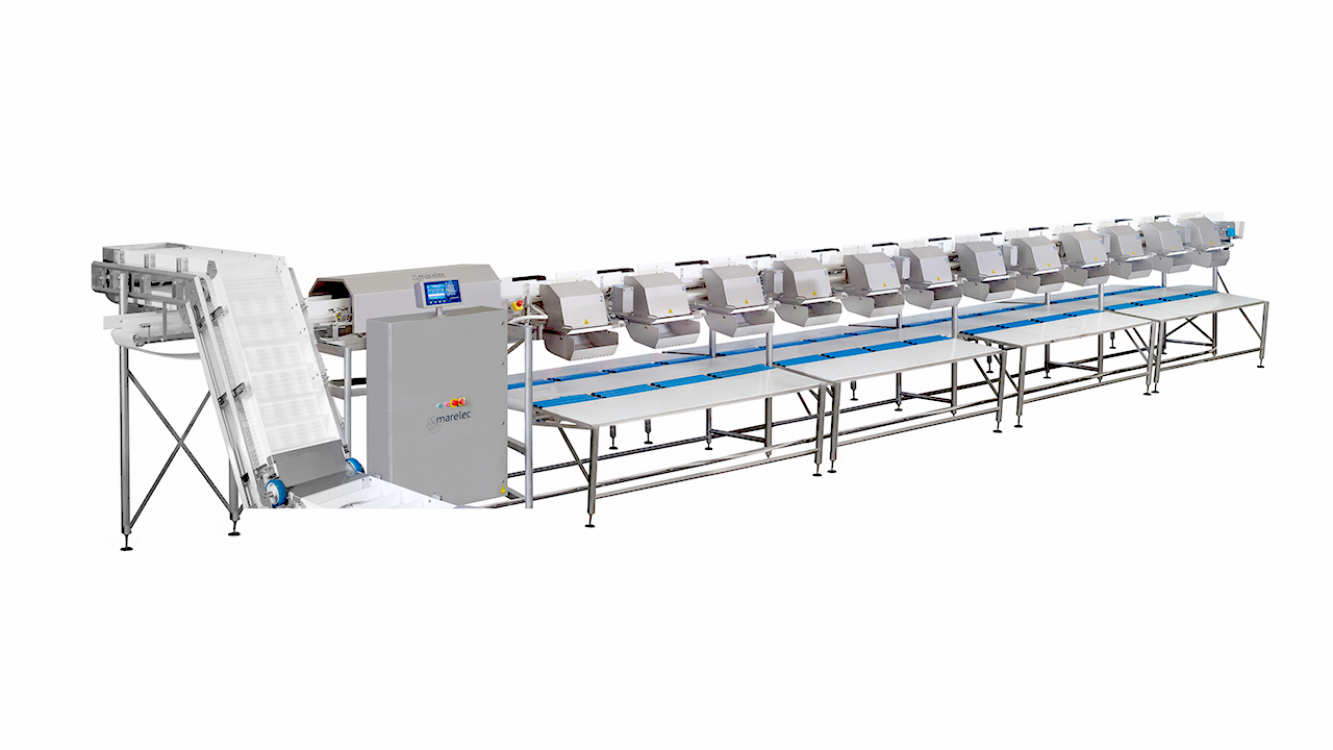

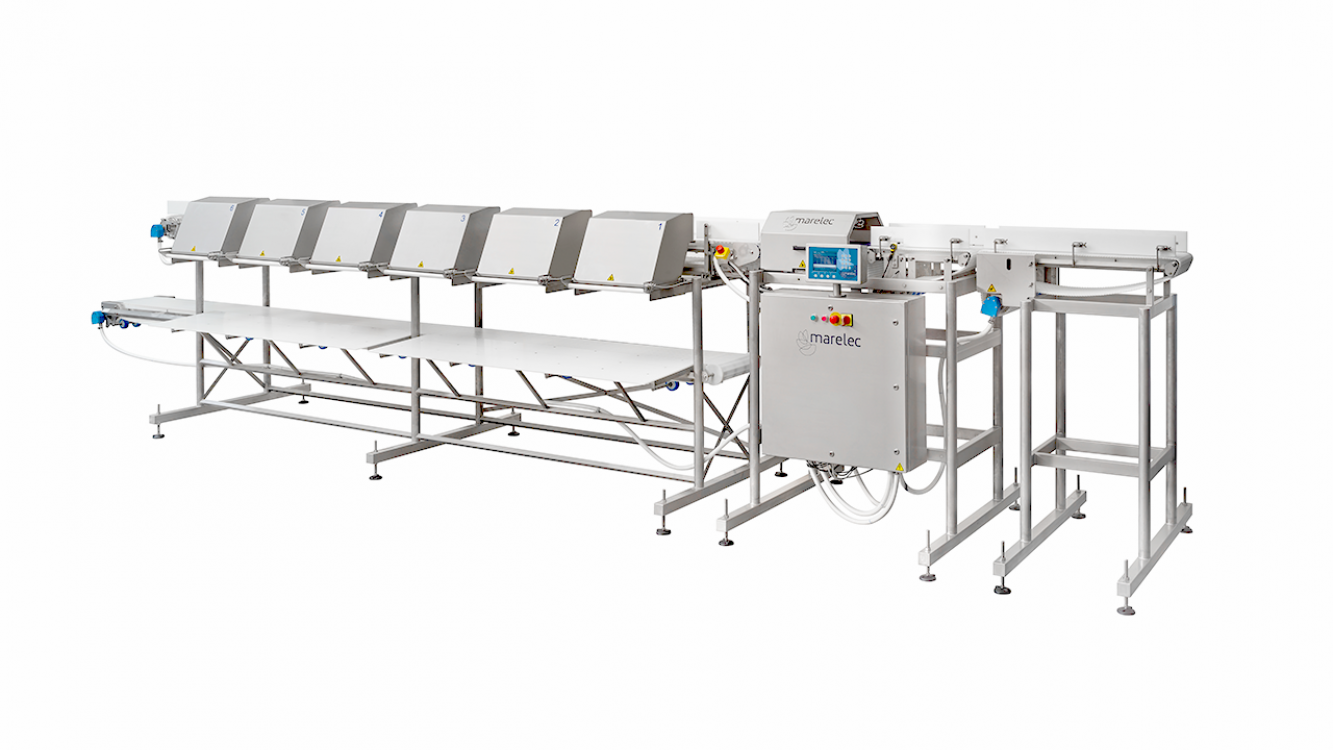

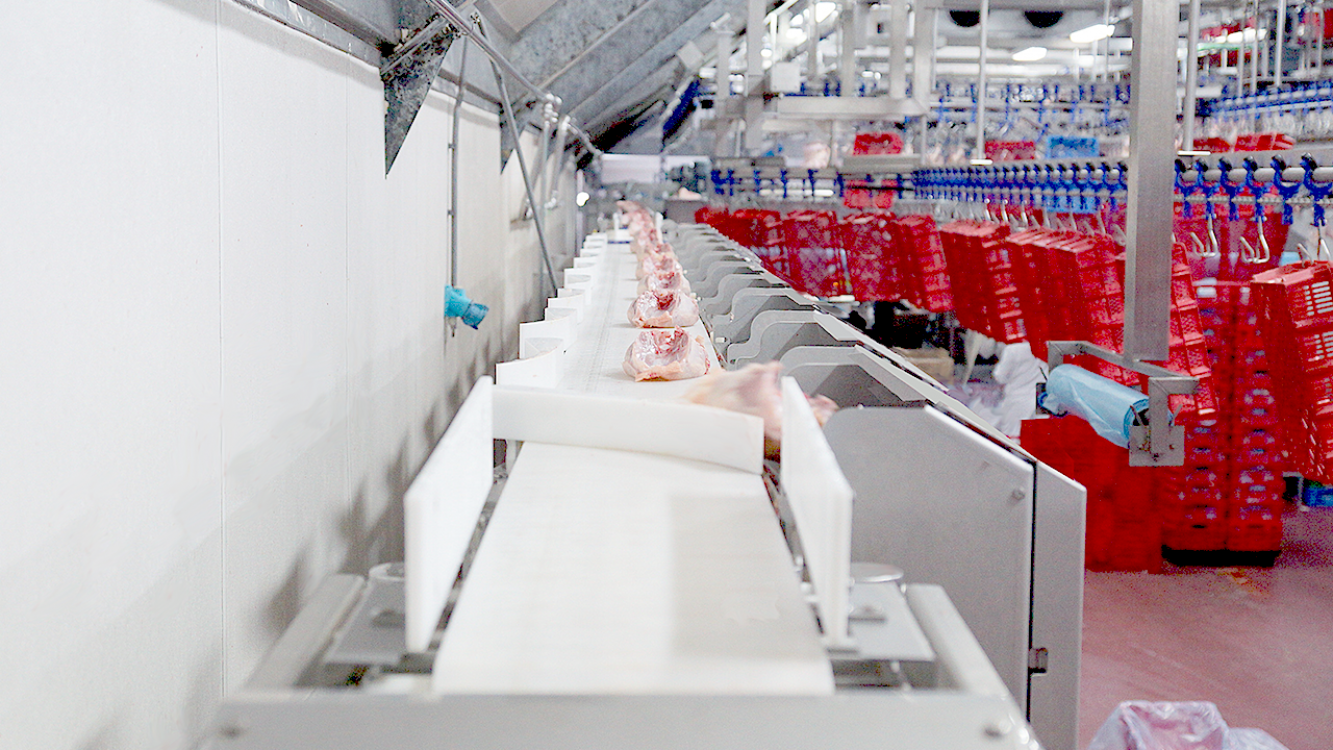

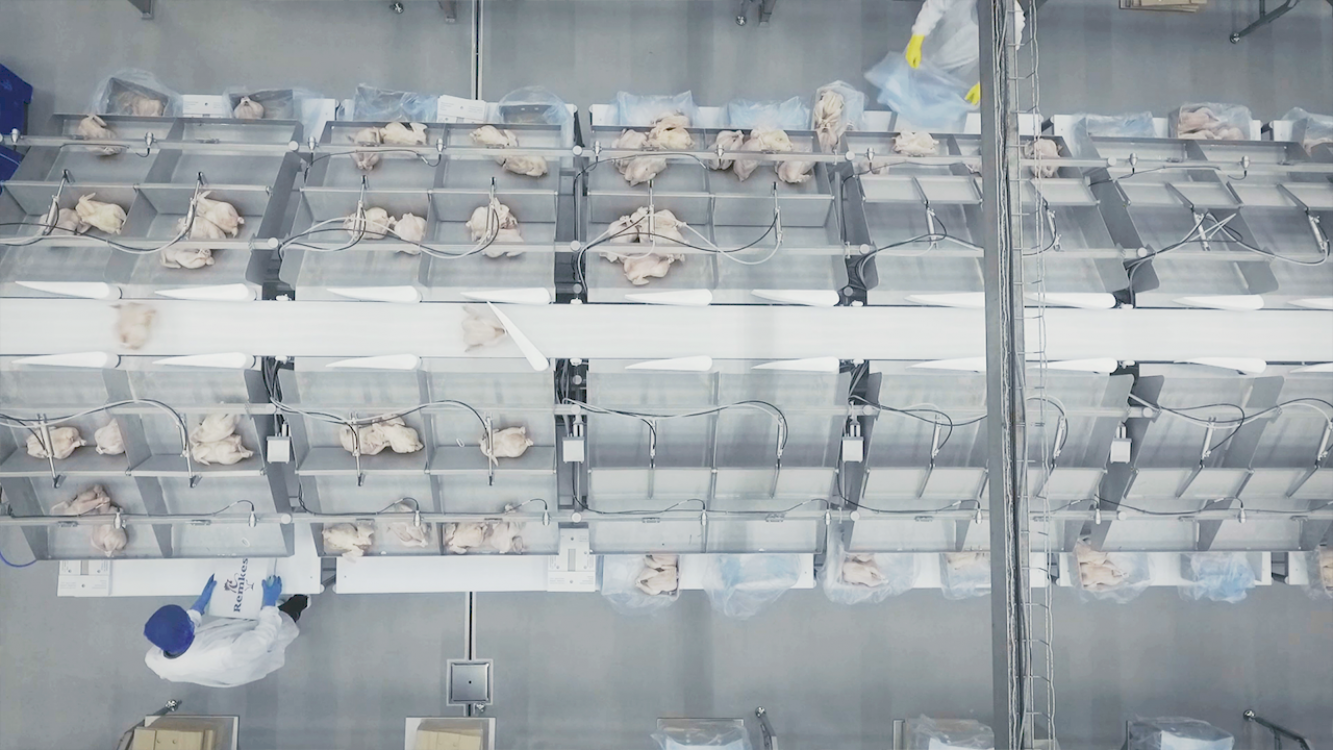

A MARELEC MC grading system consists of an infeed conveyor, a dynamic weigher and a grading belt. This MARELEC solution is leading in the sector thanks to the various infeed, dosing and grading possibilities.

Flexible Grading System

The robust construction and high levels of reliability mean that a MARELEC system requires significantly less maintenance than other machines. If the product properties change, the MARELEC MC Grading System can quickly and easily adapt, and works highly precisely without any added effort. This results in a higher return, improved product quality, higher profitability and ultimately a short payback period.

Jansen and Marelec

Jansen Techniek supplies, installs and maintains MARELEC systems in the Netherlands. We can integrate the grading system into your current production line, but also offer it as part of an overall solution.

Specifications

No. programs 999

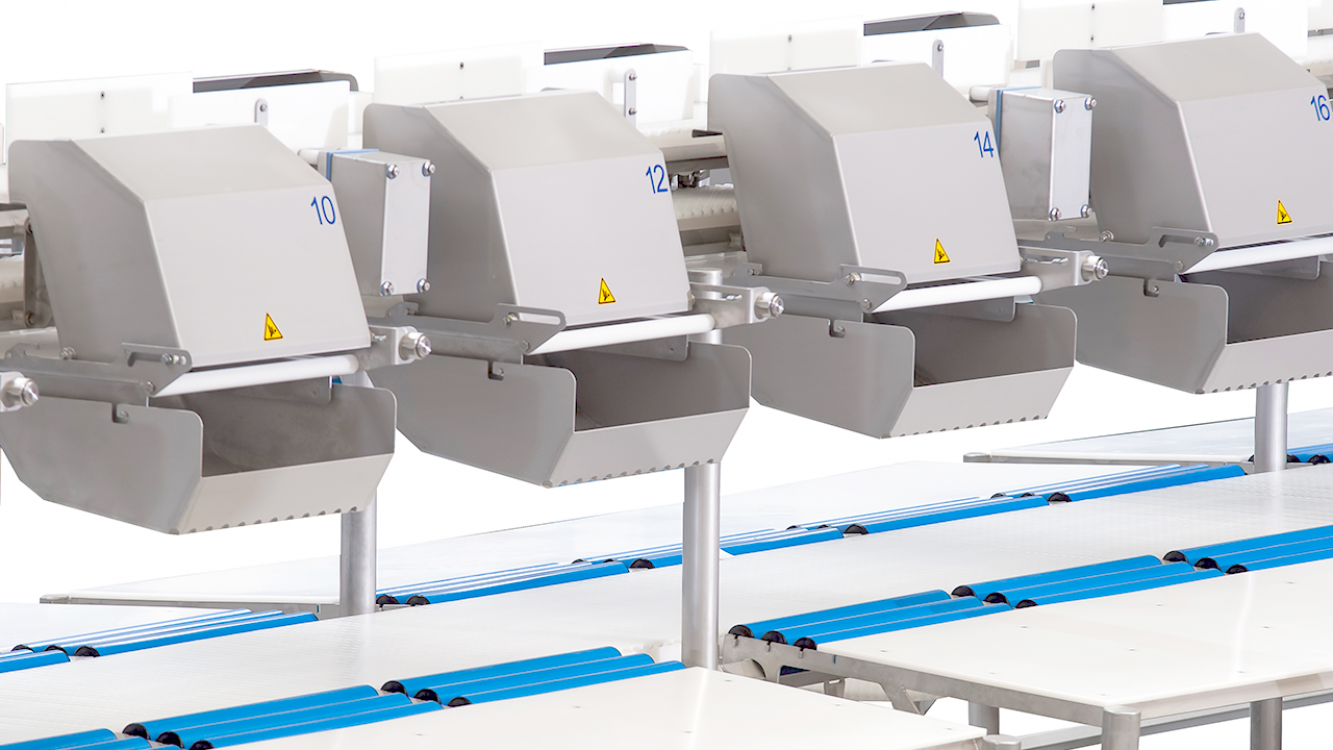

Number of grading stations 1 - 24 Single and double line
Measuring range 10g - 20 kg
Precision To be secured according to weighing range
Maximum speed Up to 240 units per minute (depending on product size)
Protection IP68 Fully waterproof
Construction Stainless steel 304 and 316 / plastic (FDA)
Conveyor belt Polyethylene grid

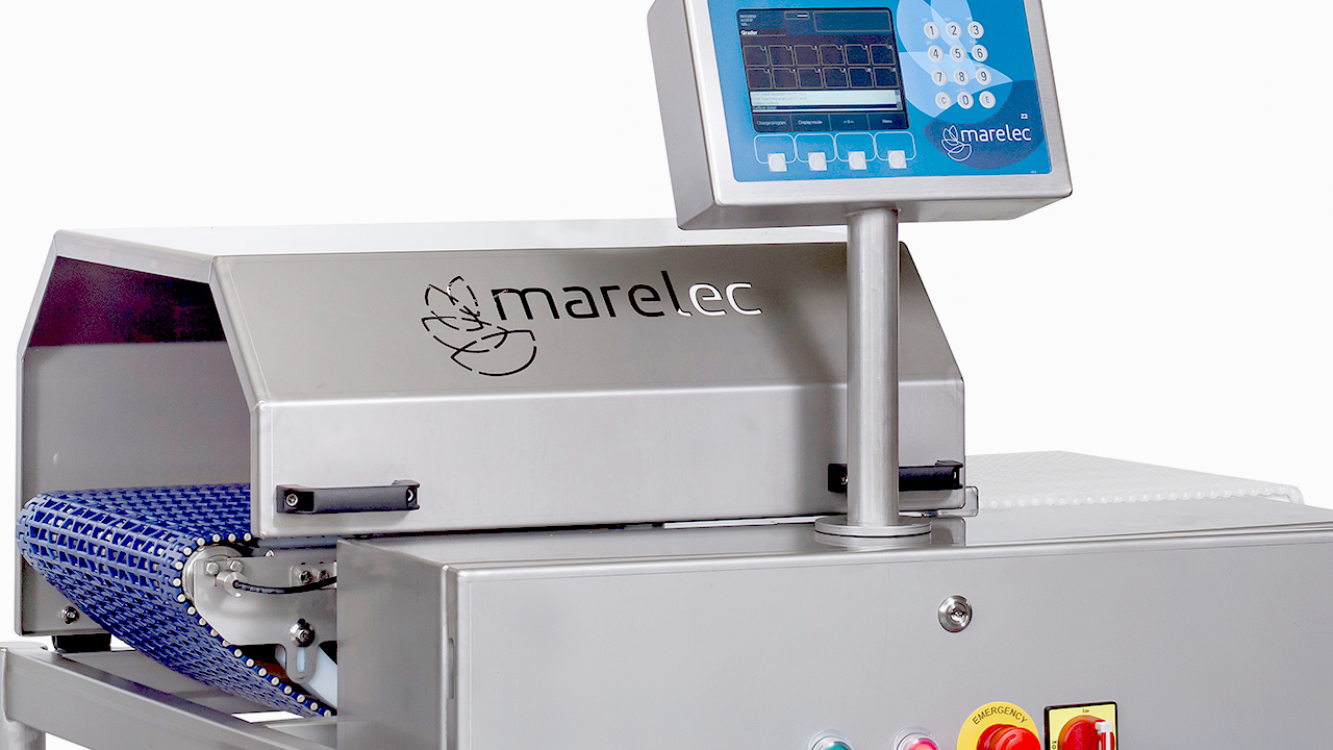

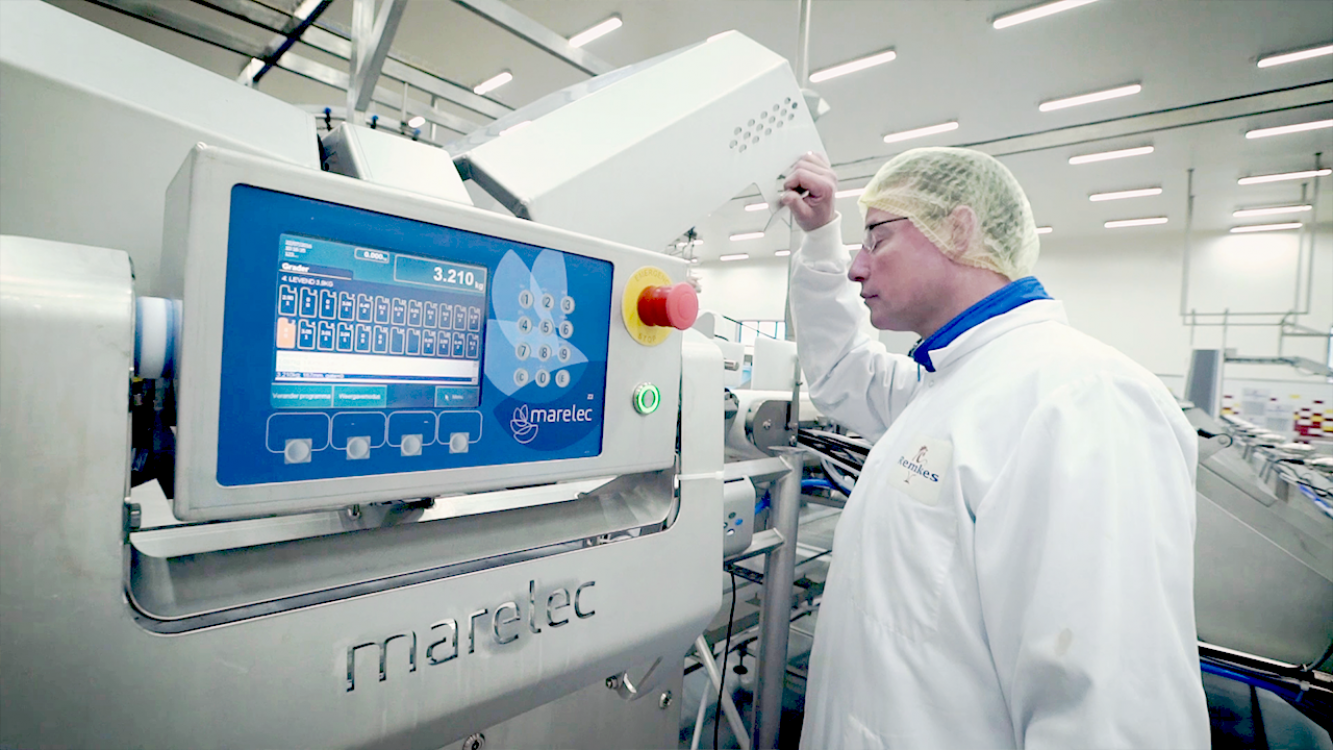

Indicator Marelec Z2 with UTP-I/IP connection
Air supply 6-bar, flow rate depends on configuration
Software Auto calibration and auto zero point, smart batching software
Options Design in stainless steel 316L / Weighing bins at output / Marelec label printers / Marelec production management software

Downloads

Interested? We would like to advise you!

Thomas van Rijn

The Marelec MC grading system consists of an infeed conveyor, a dynamic weigher, and a grading belt. It offers speed and precision and can be configured with up to 24 grading stations. As the agent of Marelec Food Technologies in the Netherlands, we supply and maintain both the MC grading systems as well as other weighing, grading and portioning systems from this Belgian manufacturer active in over 30 countries.

Mechanical engineering in the food industry

Jansen Techniek specialises in custom mechanical engineering for the food industry. We’re always on the move, and develop solutions aimed at optimising the production processes for our customers every day. Alongside Marelec machines, we supply other systems including conveyor belts, box tippers, flow weighers and stackers.

Almost every system we construct is unique. Tailored entirely to your situation.
