Description
The FFG Flat Fish Gutting machine is a ground-breaking machine for automatically stripping freshly-caught plaice. An experienced fisherman can strip an average of 10 to 15 plaice per minute by hand. With the FFG Flat Fish Gutting machine, 2 fishermen can process up to 80 plaice per minute. This is several times faster. In addition, a major advantage of the Flat Fish Gutting machine is that everyone can achieve the same result. It is highly user friendly and precise.
This is how it works

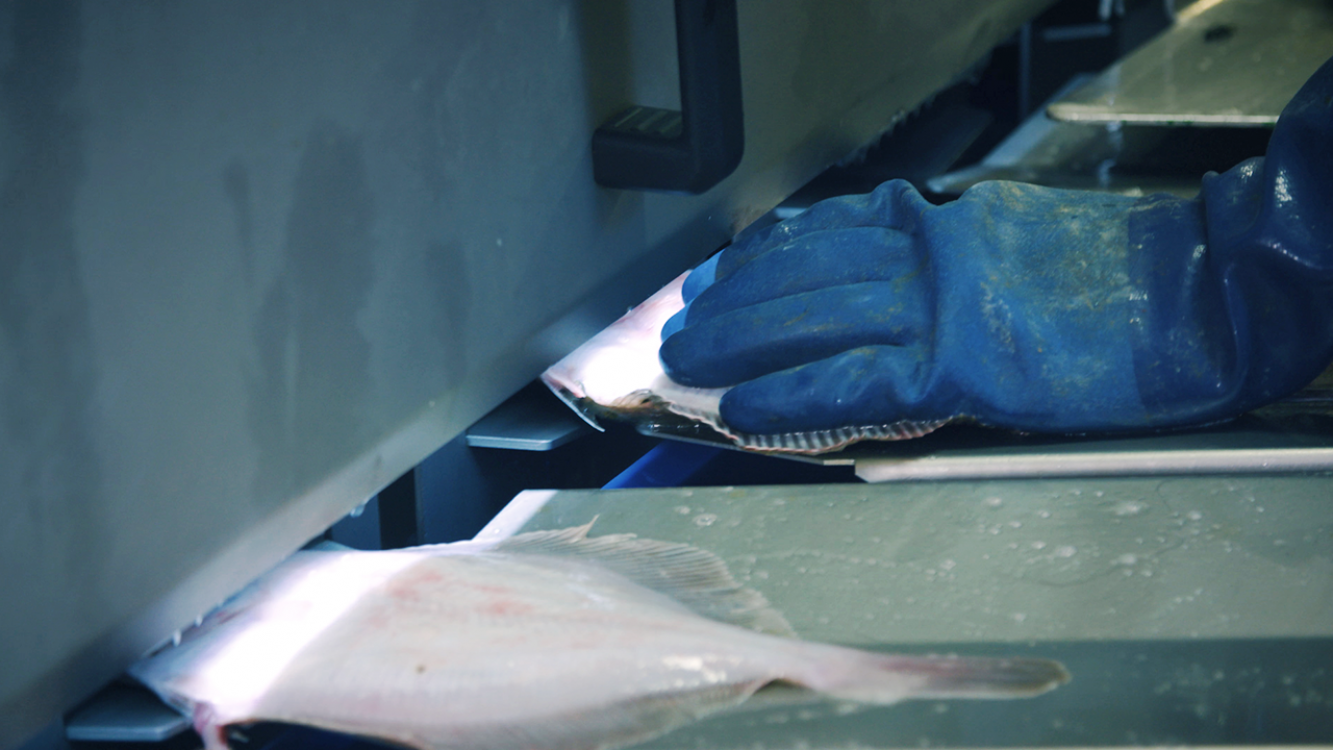

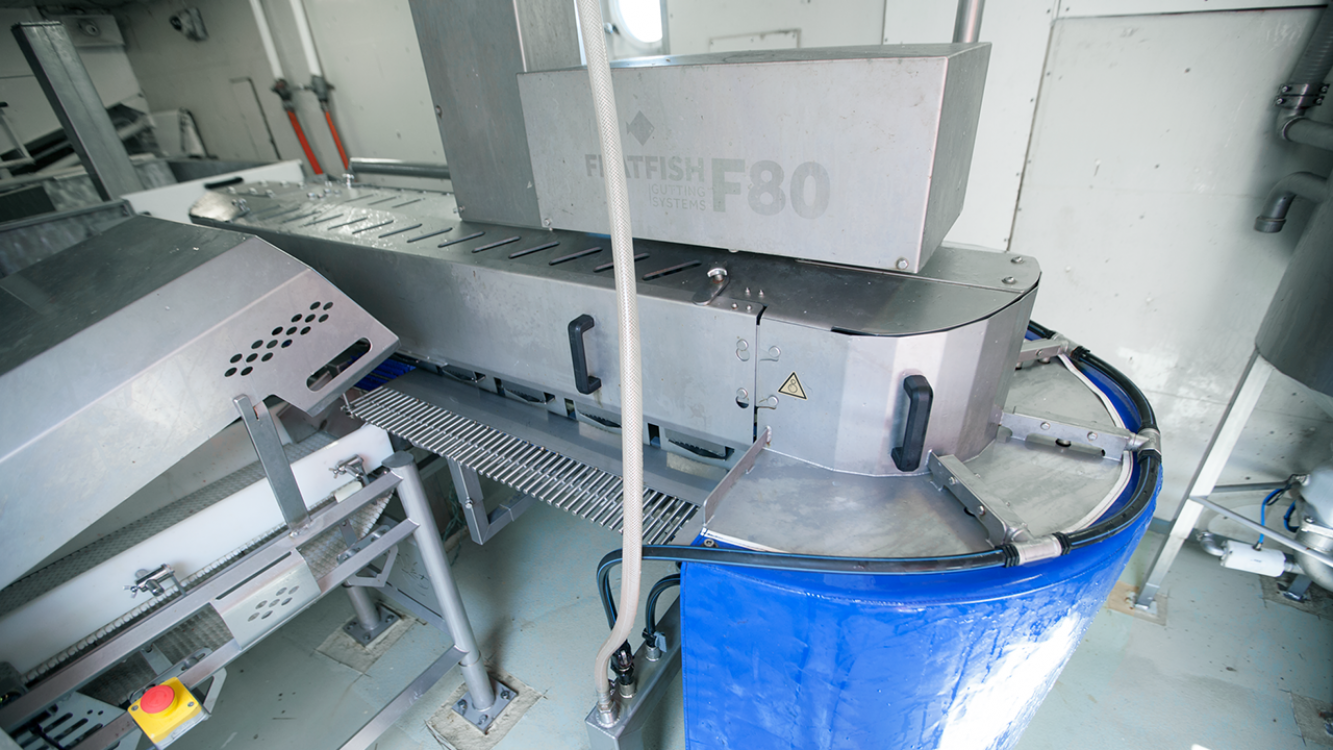

The Flat Fish Gutting machine consists of a revolving oval carousel with a number of product positions on top. One or multiple people add the plaice to the product holders. In addition, the fish is secured into place with a specially designed clamp and moved to the protected part of the Flat Fish Gutting machine, where it is stripped in the right position and sucked empty. Finally, the stripped plaice is tidily rinsed clean and unloaded to prepare for sorting into classes 2, 3 or 4.
Important benefits
In addition to the fact that stripping the plaice with the Flat Fish Gutting machine is quicker, more consistent and less labour-intensive, an additional benefit is that the fish has a longer shelf life thanks to a lower germ count and the fact that filleting companies can get more return from the fish thanks to the uniform cut.
Built for work at sea
The Flat Fish Gutting machine has been designed for the extreme weather and working conditions on board your ship. All materials are suitable for foods and resistant to sea water. The machine has a compact, robust design and can be attached to the processing deck of your ship.
With the Flat Fish Gutting machine, you can quickly, simply and safely process your haul on board!
Specifications
| Nominal capacity | 80 fish / minute |
| Product class | Class 2 to 4 / 270 – 410mm / 200-600 gram |
| Dimensions | approx. 2,500 x 1,000mm |
| Weight | 814kg (total) Plaice stripper: 650kg / Side channel fan: 114kg / Vacuum tank and accessories: 50kg |
| Construction | Stainless steel 304 and HMPE |
| Power | 380V |
| Connection capacity | 5.5 - 11kW (depending on vacuum system) |
| Control box | Equipped with 3 frequency regulators for skin roll, protection switches and back-up systems in the event of disruption to one of the components. |
| Protection category | IP67K |

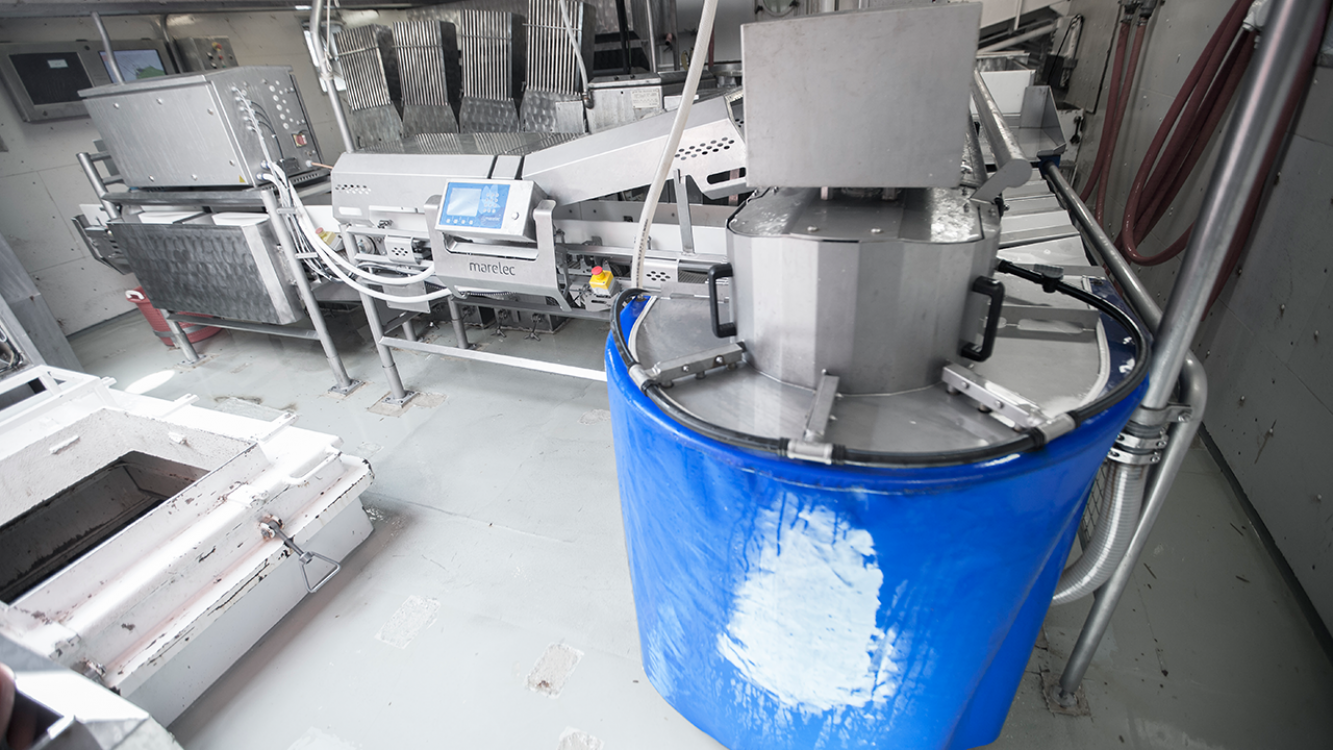

| Including | Cyclone with vacuum pump |
| Excluding | Rinse water connection |
Downloads
The FFG Flat Fish Gutting machine has been designed by Jansen Techniek for automatically stripping freshly-caught plaice. This highly robust machine has been built for work at sea. With the FFG Flat Fish Gutting machine, fishermen can quickly, safely and precisely process their haul on board.
Mechanical engineering in the food industry
Jansen Techniek specialises in custom mechanical engineering for the food industry. We’re always on the move, and develop solutions aimed at optimising the production processes for our customers every day. In addition to the FFG Flat Fish Gutting machine, we supply many other systems including conveyor belts, portioning machines, sorting lines, box tippers and stackers.
Almost every system we construct is unique. Tailored entirely to your situation.
