Marelec Portio 1A & 3A

Portioning with a natural look
Watch the video
Cutting at an angle
0°, 30° or 45° for a natural look
1 or 3 camera system
For flat or round products
Extra quick slicing
Up to 17.5 cuts per second

Description

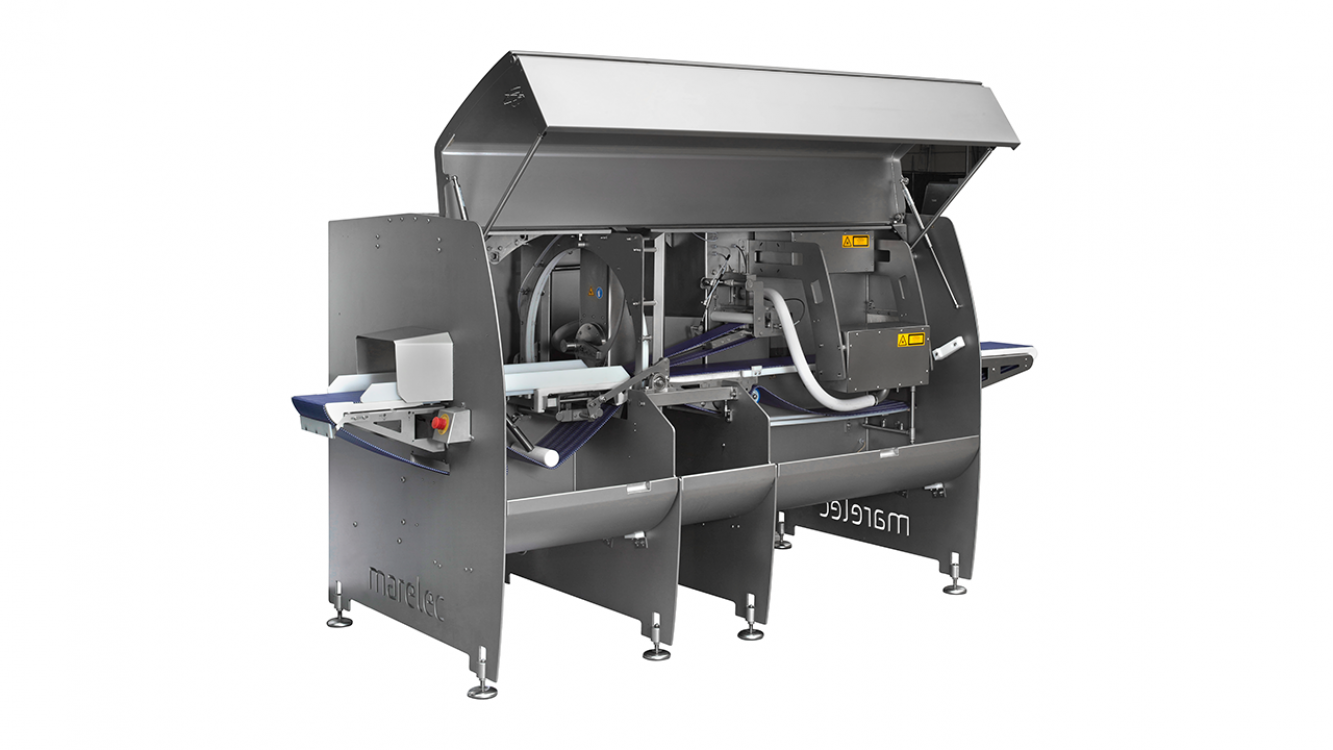

The MARELEC PORTIO 1A (or 3A) is an intelligent portioning machine designed for portioning fresh products such as fish fillets, whole fish, meat and poultry.

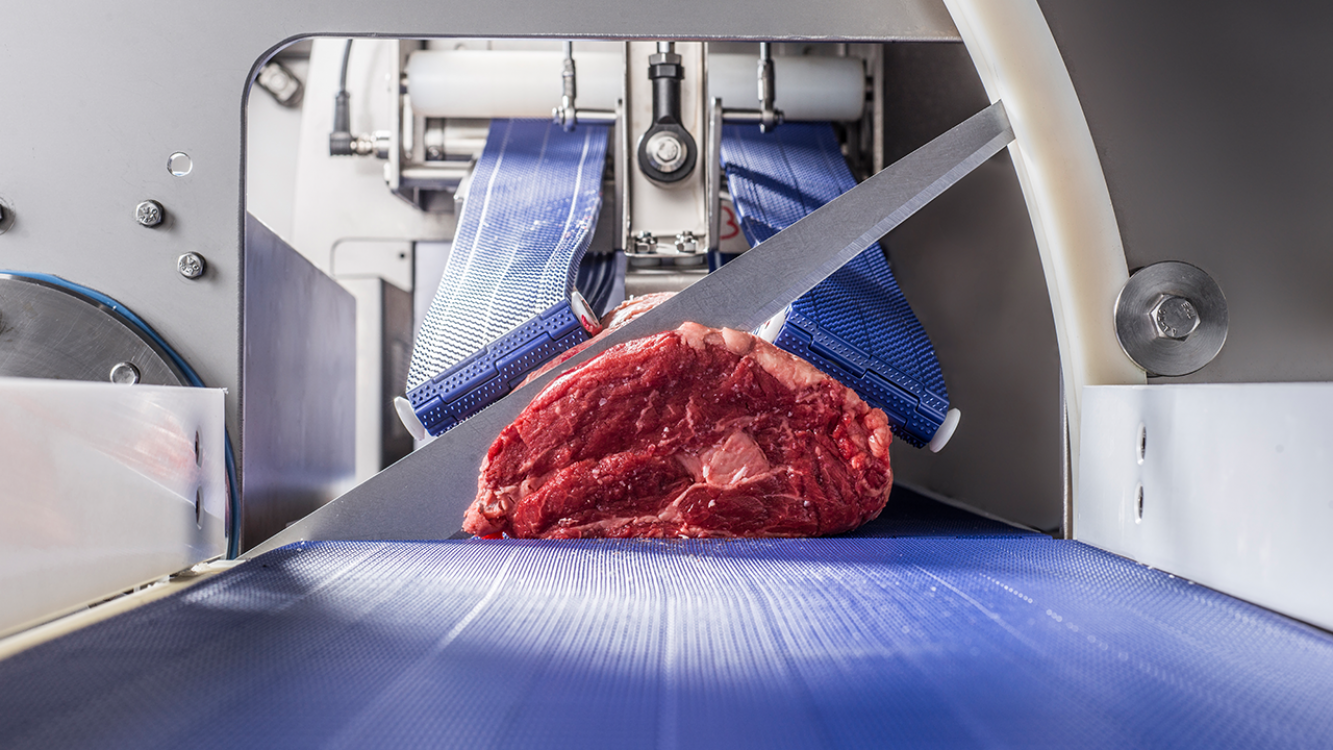

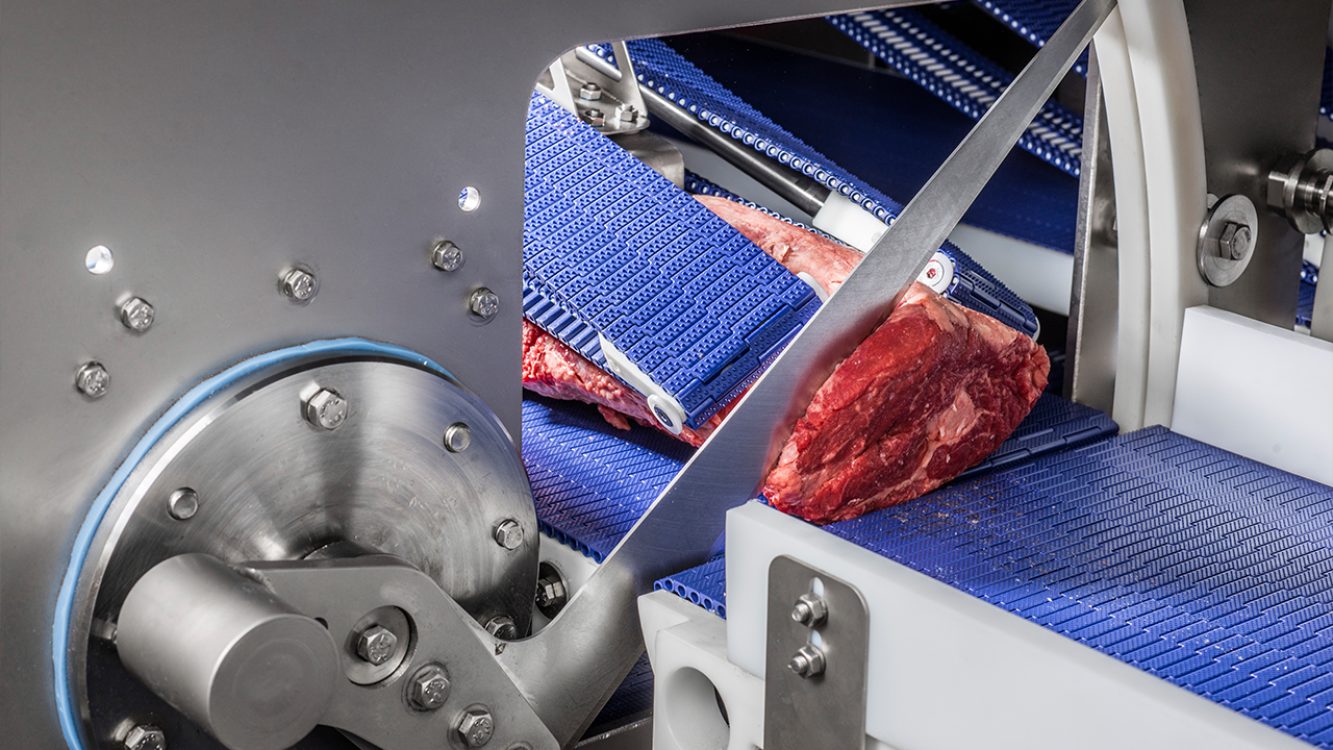

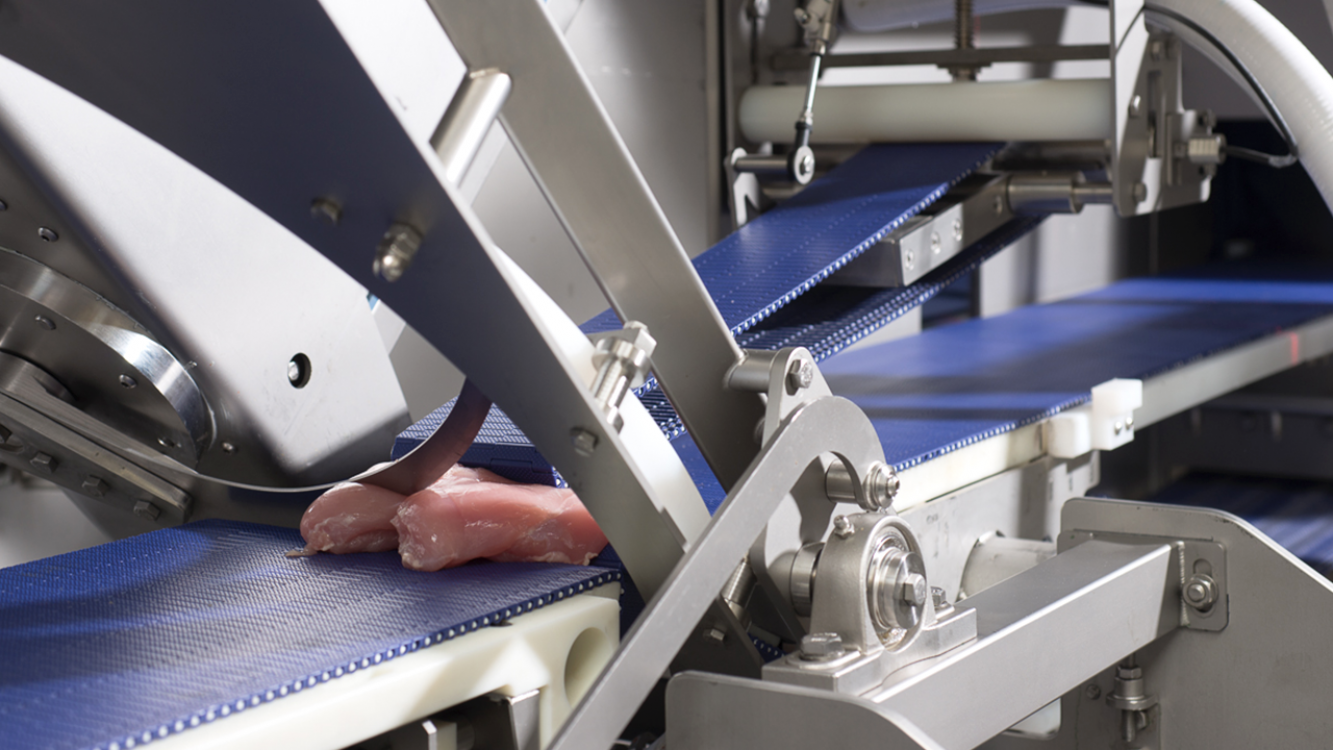

To give the cut products a natural look, the PORTIO 1A and 3A cutting angle can be adjusted from 0° to 30° or 45°. This is a quick, easy process with no use of tools. Cutting at an angle can be performed at the same speed as with the standard PORTIO (1 or 3).

Portioning method

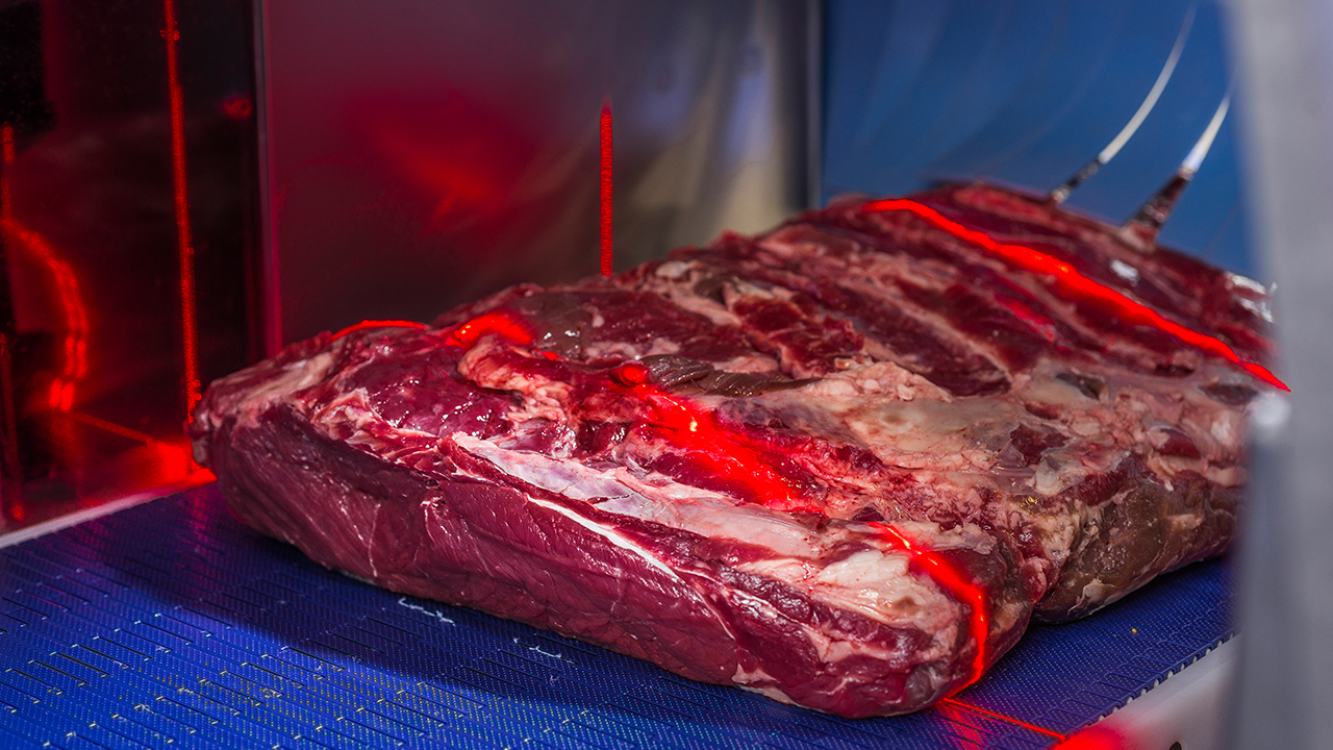

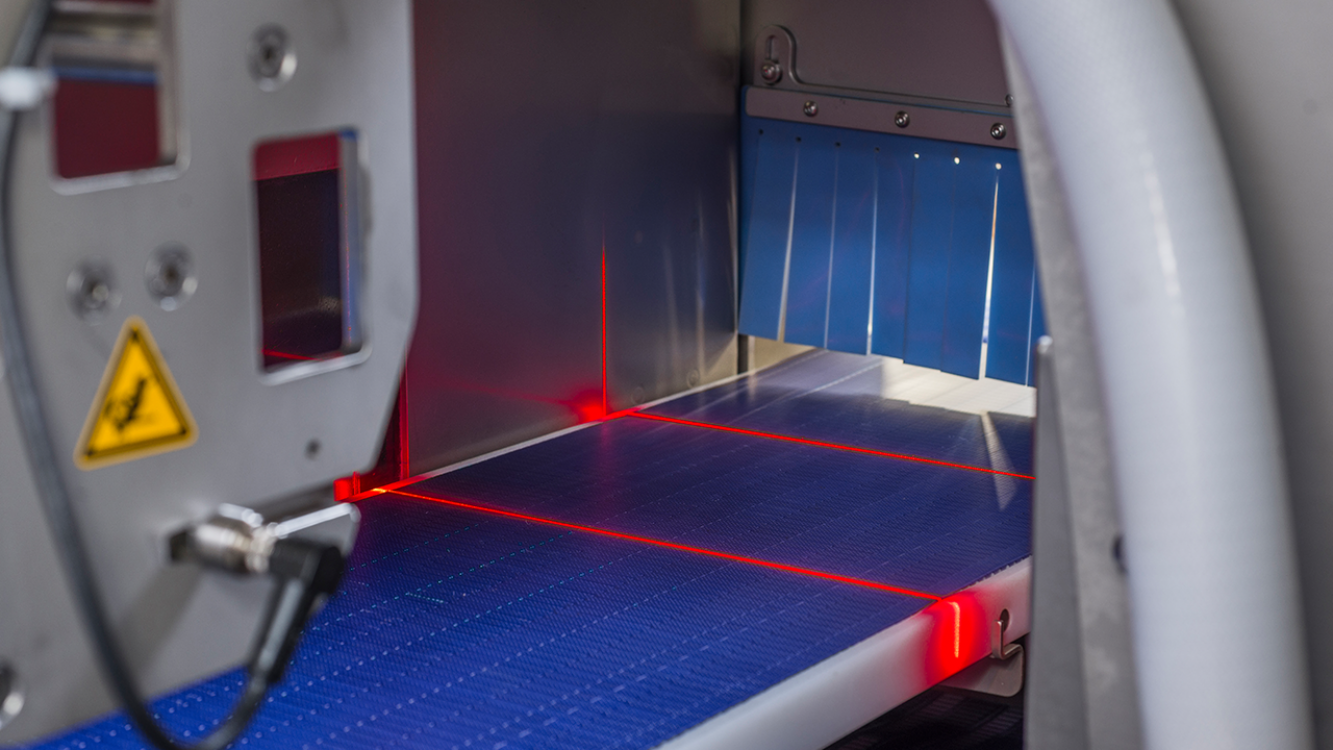

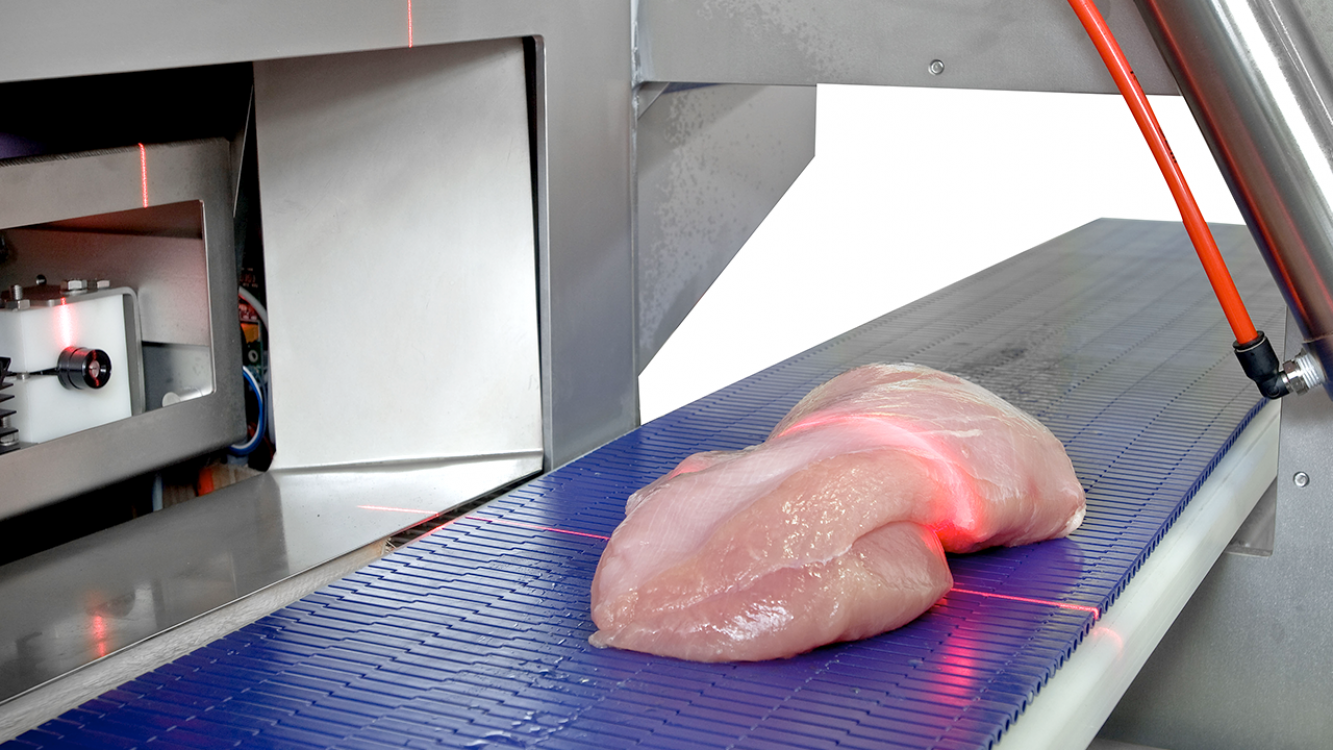

The desired weight and shape of the final product is selected in a program in advance, after which the MARELEC portioning machine creates a three-dimensional laser scan of every product to determine the volume. The computer uses these values as a basis for calculating the best cutting interval.

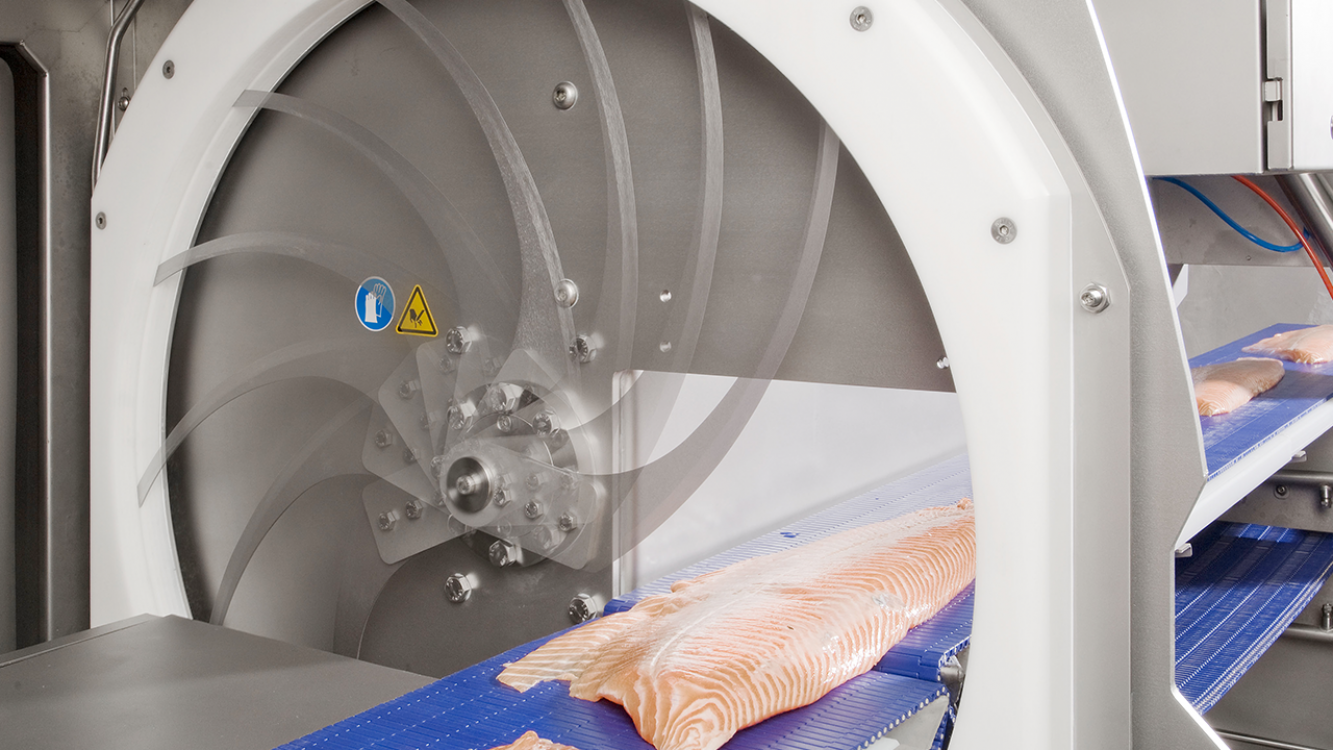

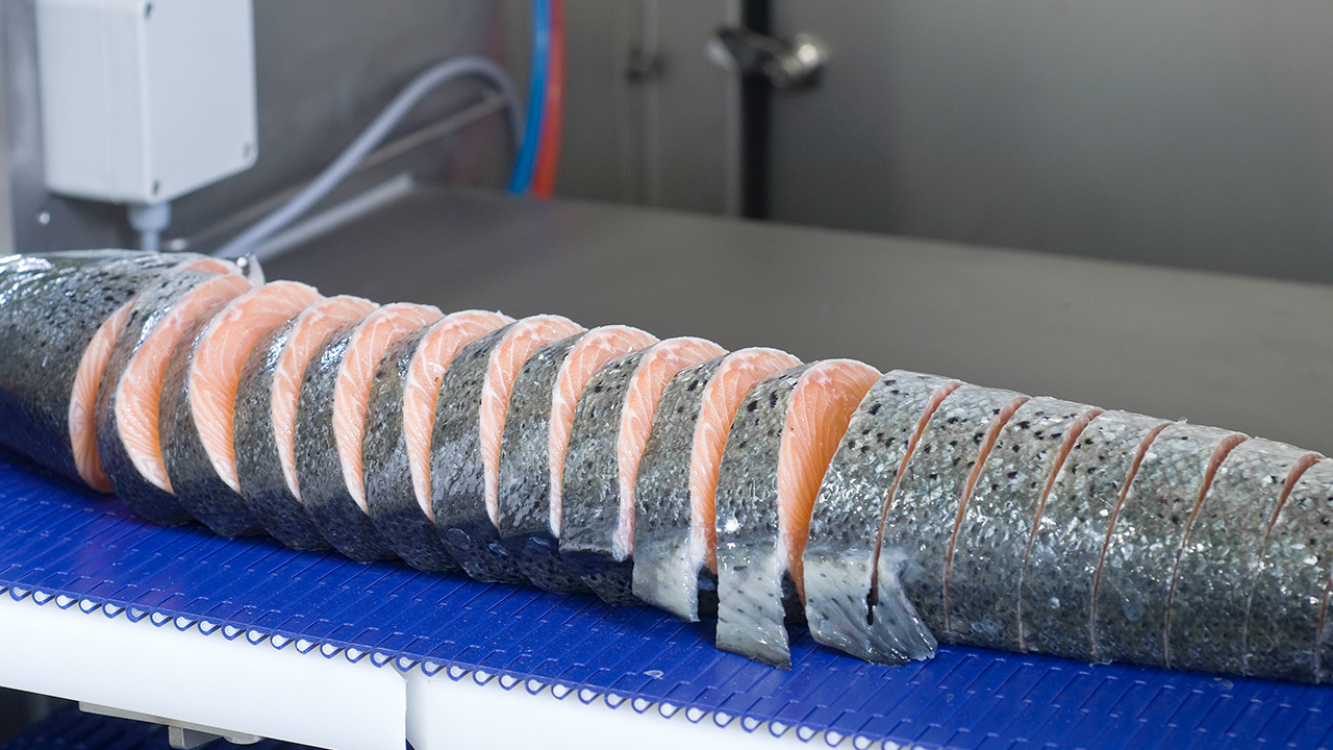

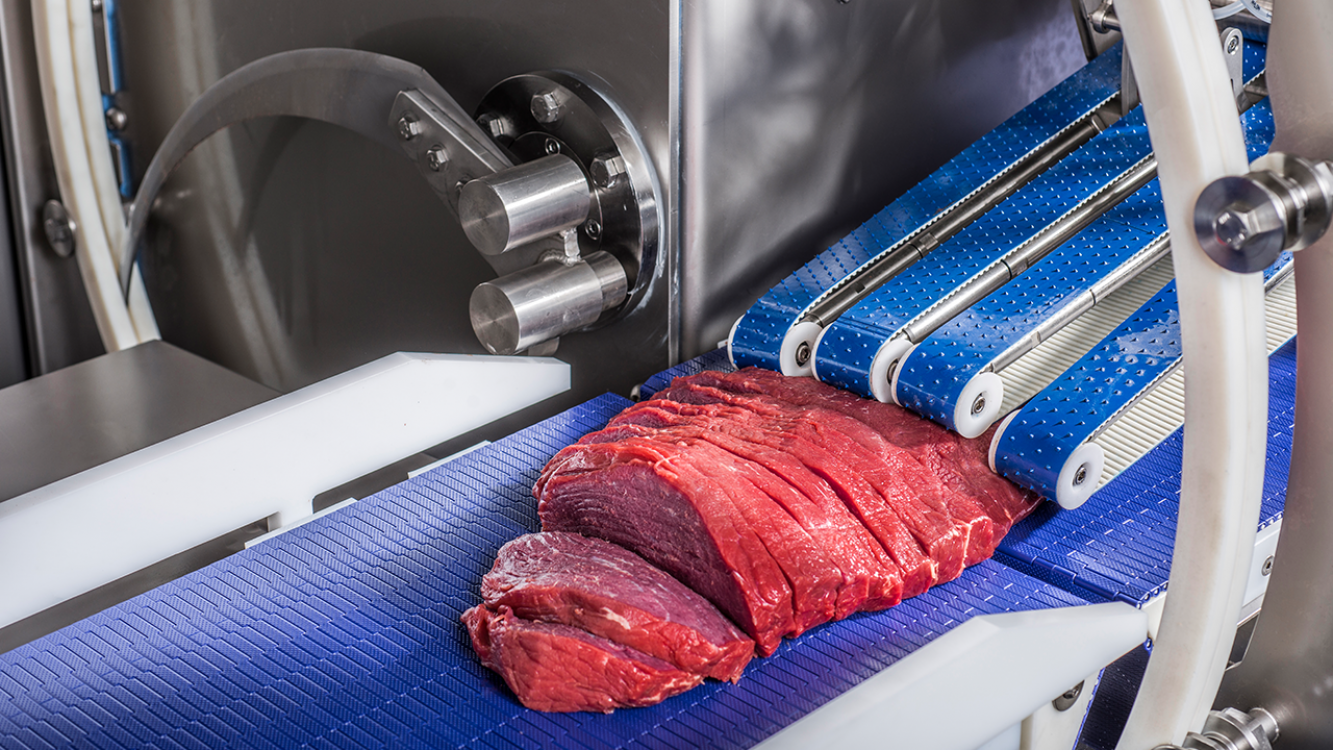

The portioning machine then very rapidly and very precisely cuts the product into the desired portions. Different types of fixation systems and knives can be applied depending on the product, and in the event of changing product properties, an additional checkweigher can optimise the precision.

1 or 3 camera system

The main difference between the PORTIO 1A and the PORTIO 3A lies in the number of cameras. The PORTIO 1A features one camera and is suitable for flat products, while the PORTIO 3A has three cameras and is better suited to scanning round products.

Portioning machine maintenance

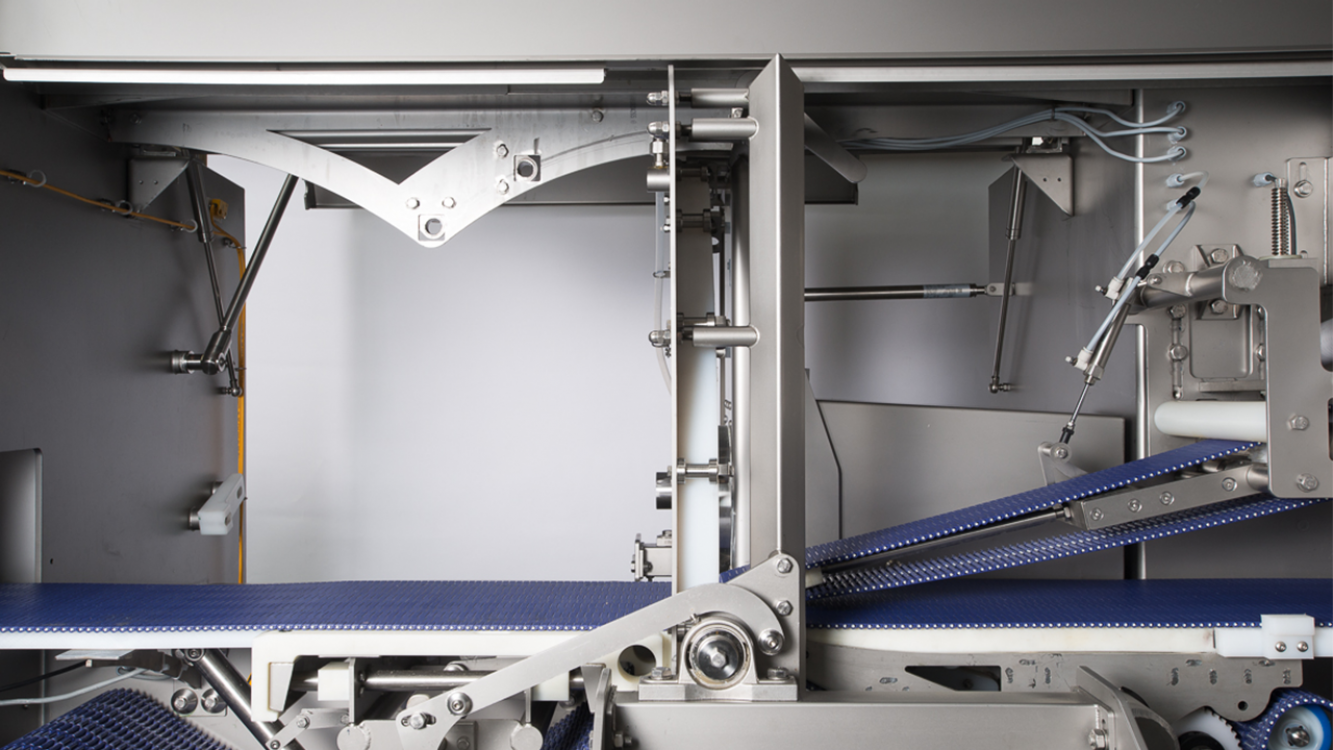

The portioning machine can be fully opened and if desired, the conveyor belts can be removed for separate cleaning. Easily obtainable components have been selected to ensure easy maintenance. This ensures low maintenance costs. In addition, all motors and encoders are located outside the wet zone, ensuring a longer service life.

Specifications

Portio 1A product dimensions 1000 x 240 x 150 mm
Portio 3A product dimensions 800 x 240 x 150 mm
Belt width 254 mm
Belt speed Adjustable to 0.6 m/s
Cutting speed Up to 17.5 cuts/s
Construction Stainless steel AISI 304 and FDA plastics
Belt type Modular

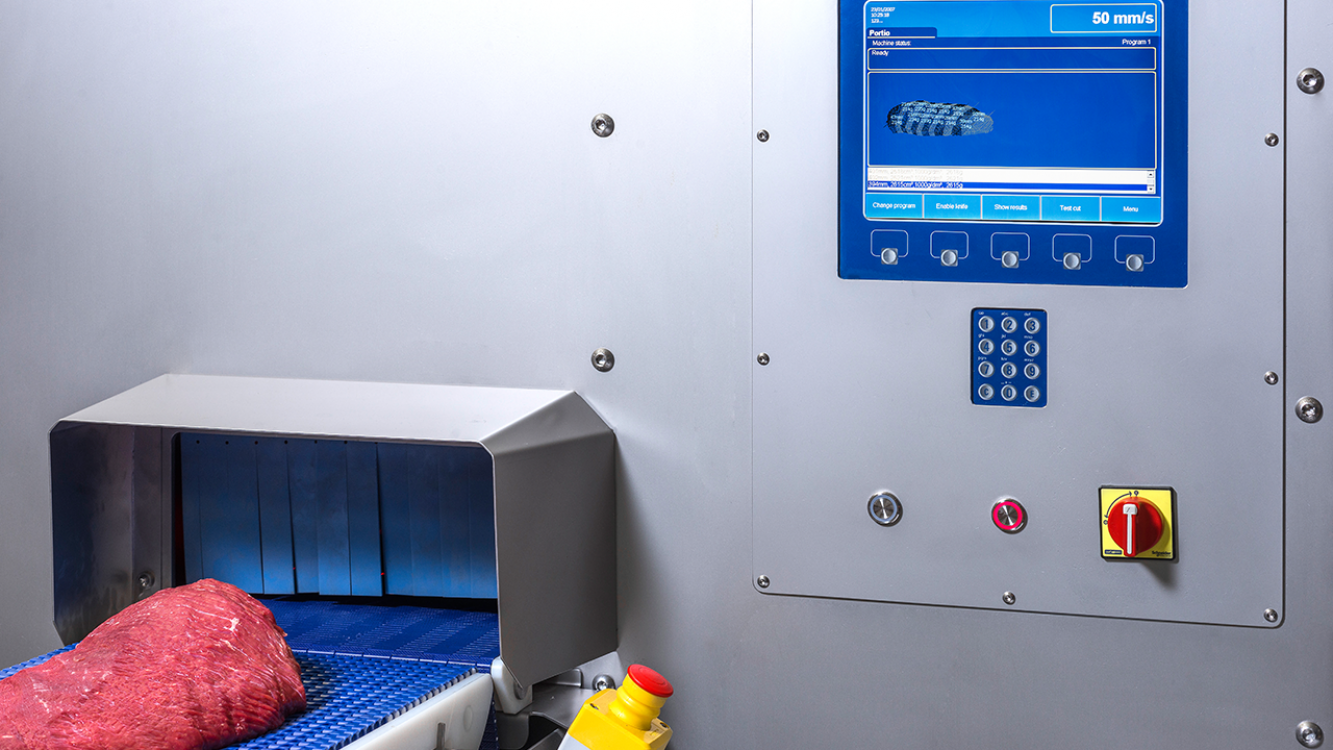

Keyboard IP67 with integrated electronics

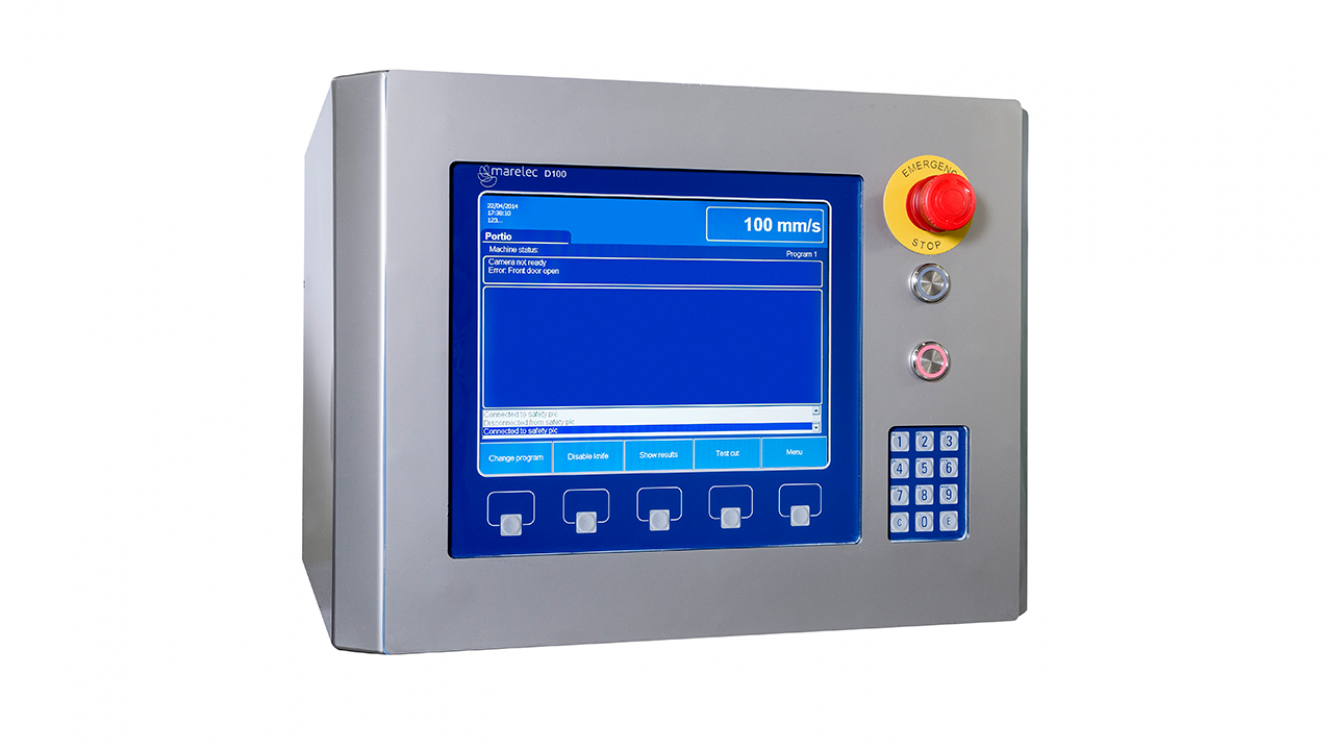

Indicator MARELEC Z2 with UTP TCP/IP connection
Software MARELEC P1 standard optimisation software
Power 3 x 380 V + N / 50-60 Hz / 5 kW
Compressed air 6 bar
Cleaning Hygienic construction/CIP integrated
Connections Direct internet connection for remote service
