Marelec Portio 1D & 3D(A)

Portioning with the highest productivity
Watch the video
Highest productivity
Two lines in 1 machine
Cutting at an angle
0°, 30° or 45° for a natural look
Extra quick slicing
Up to 17.5 cuts per second

Description

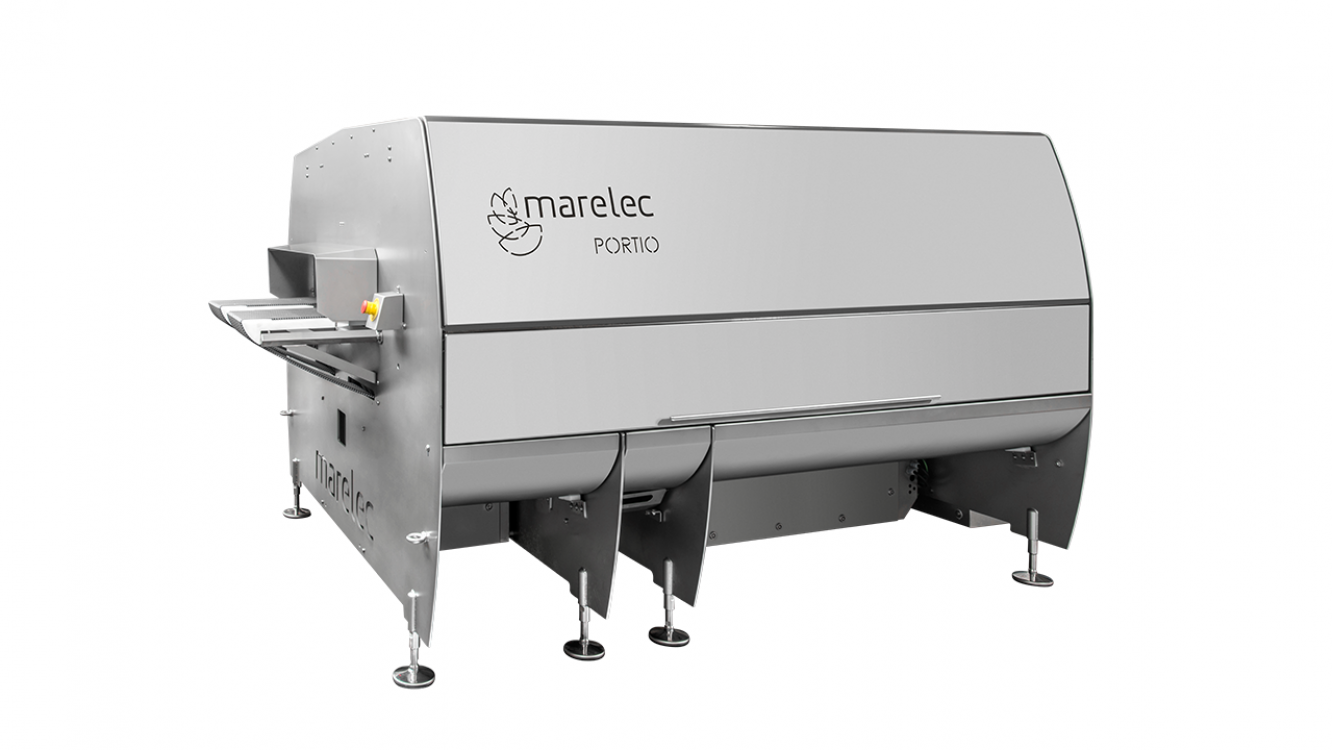

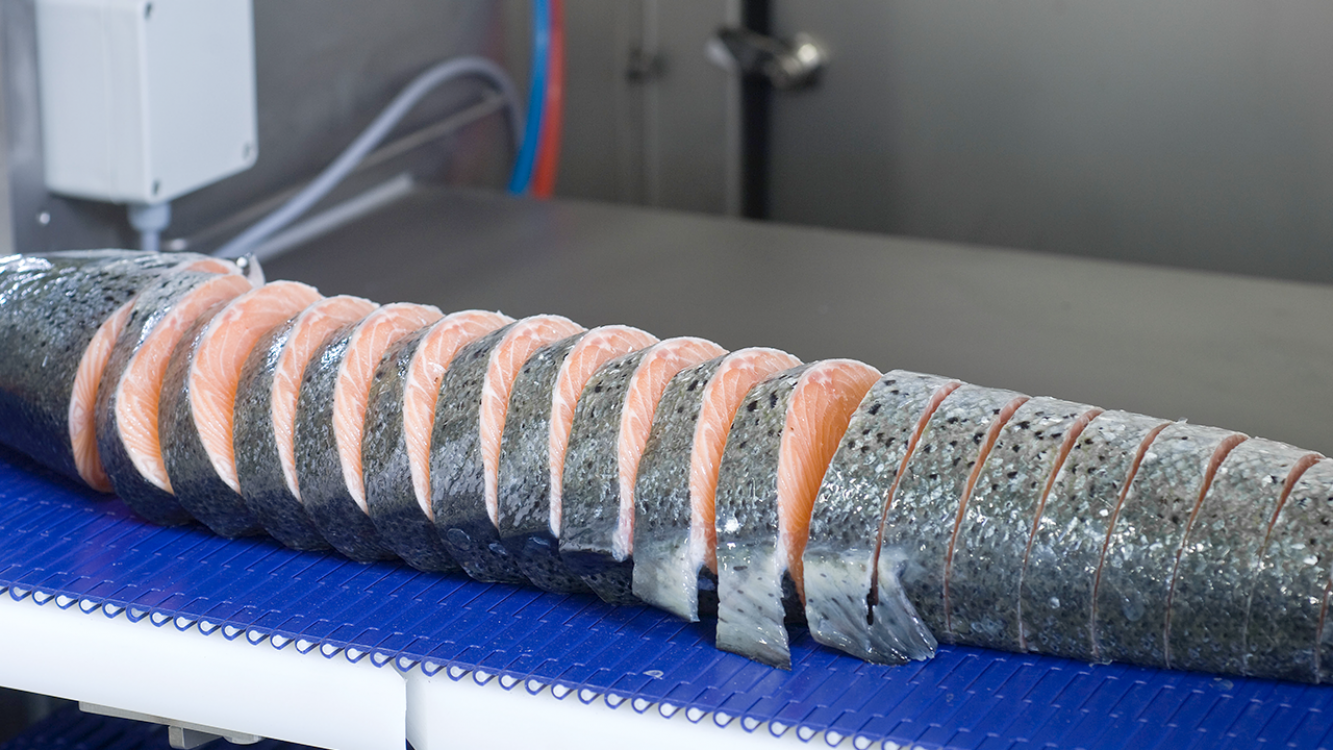

The MARELEC PORTIO 1D (or 1DA) is an intelligent portioning machine designed for portioning fresh products such as fish fillets, whole fish, meat and poultry.

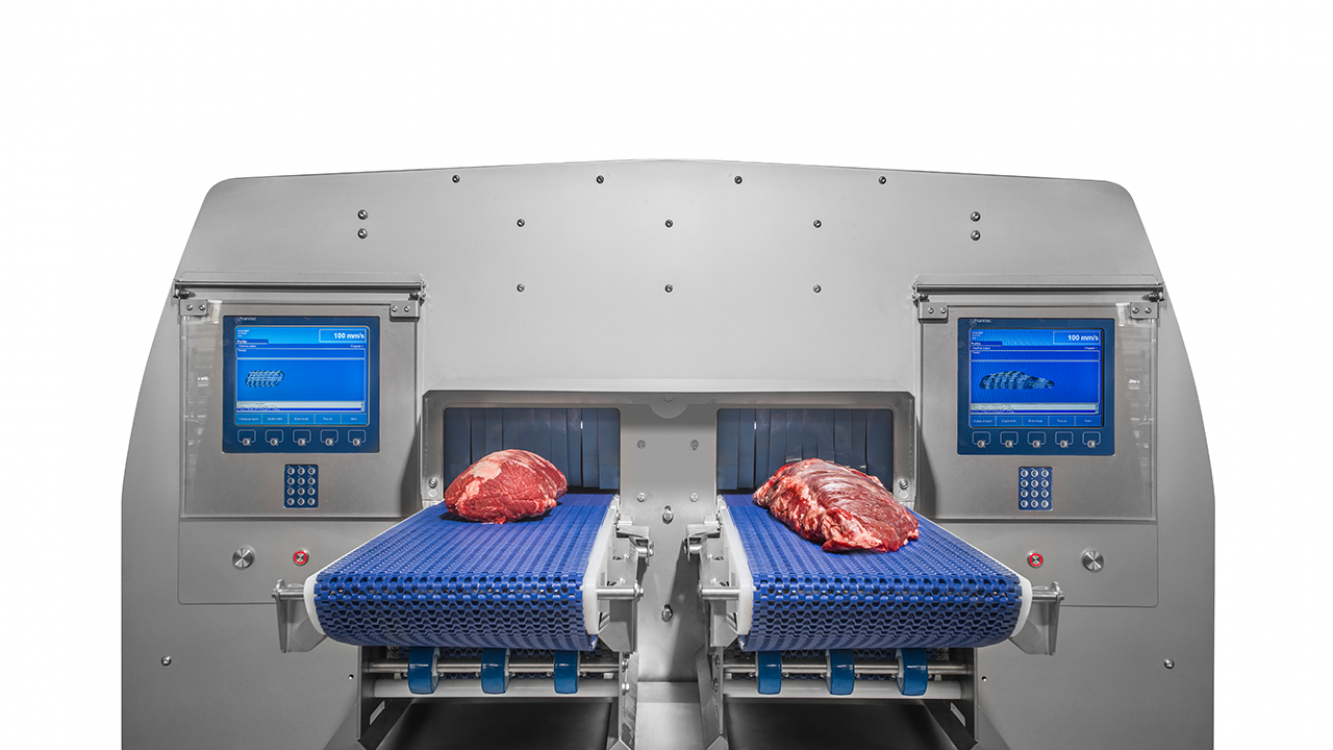

The MARELEC 1D(A) portioning machine is supplied with a double track. This means the highest productivity can be reached with the minimum possible ecological footprint. Each line is equipped with its own computer and the two lines can function entirely independently of one another.

Portioning method

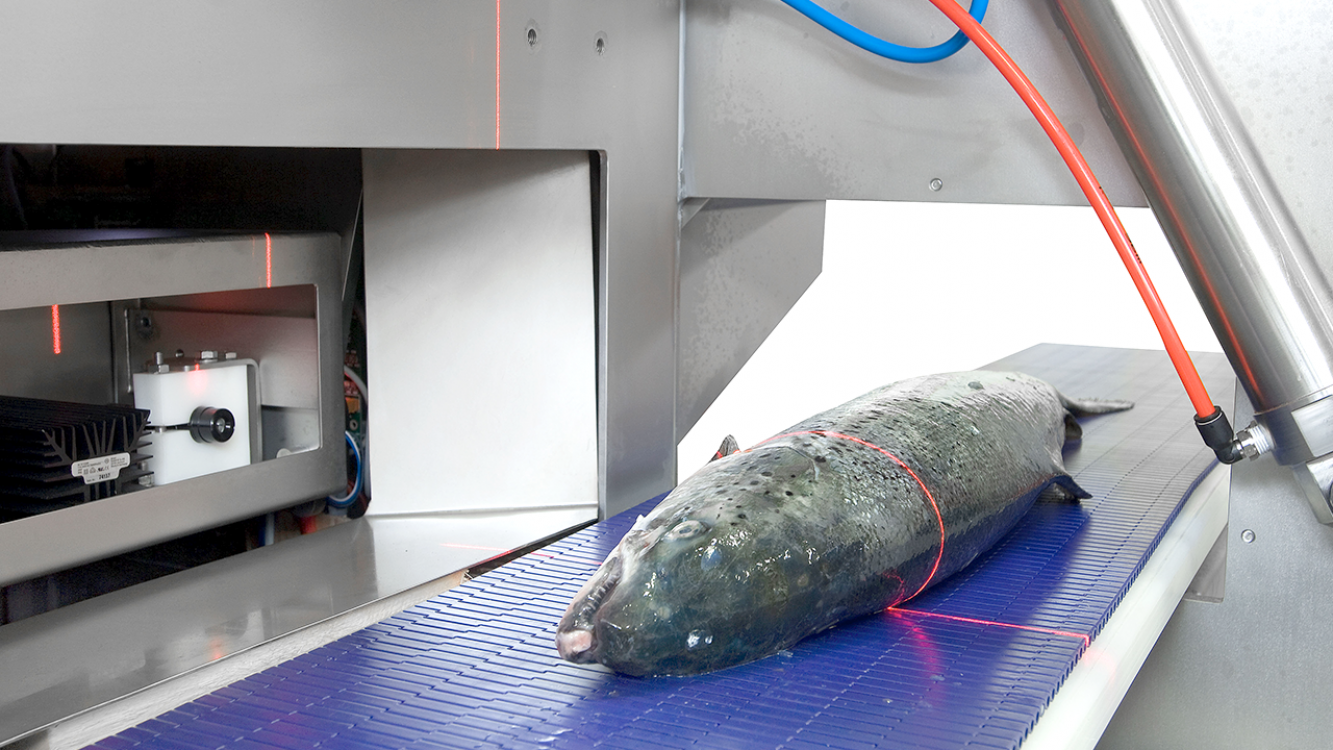

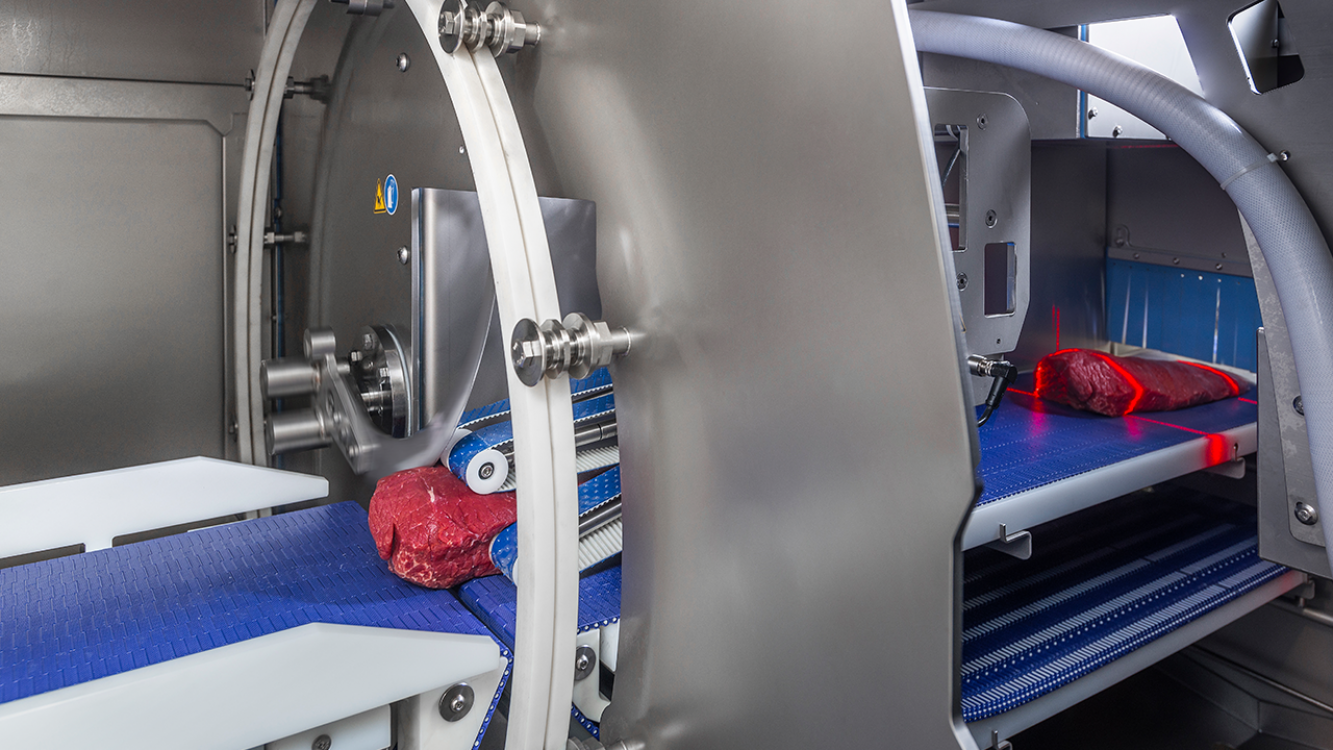

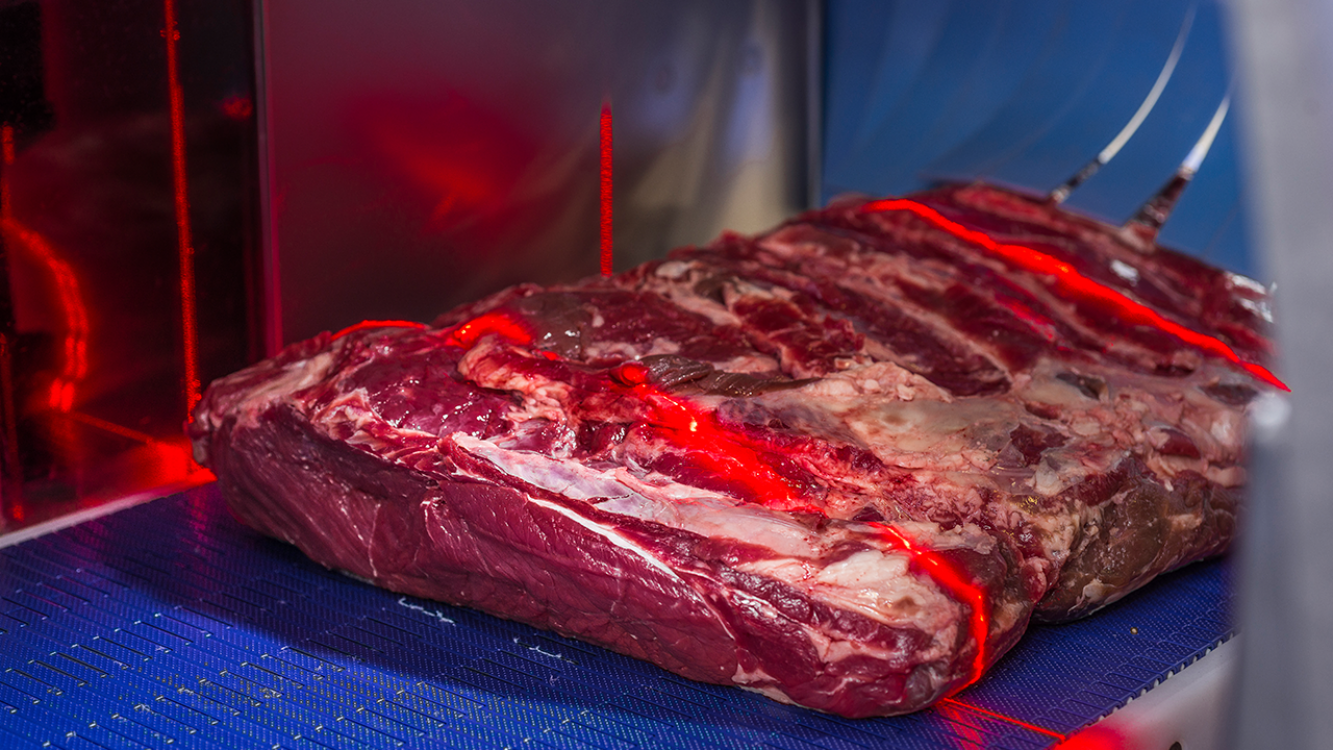

The desired weight and shape of the final product is selected in a program in advance, after which the MARELEC portioning machine creates a three-dimensional laser scan of every product to determine the volume. The computer uses these values as a basis for calculating the best cutting interval.

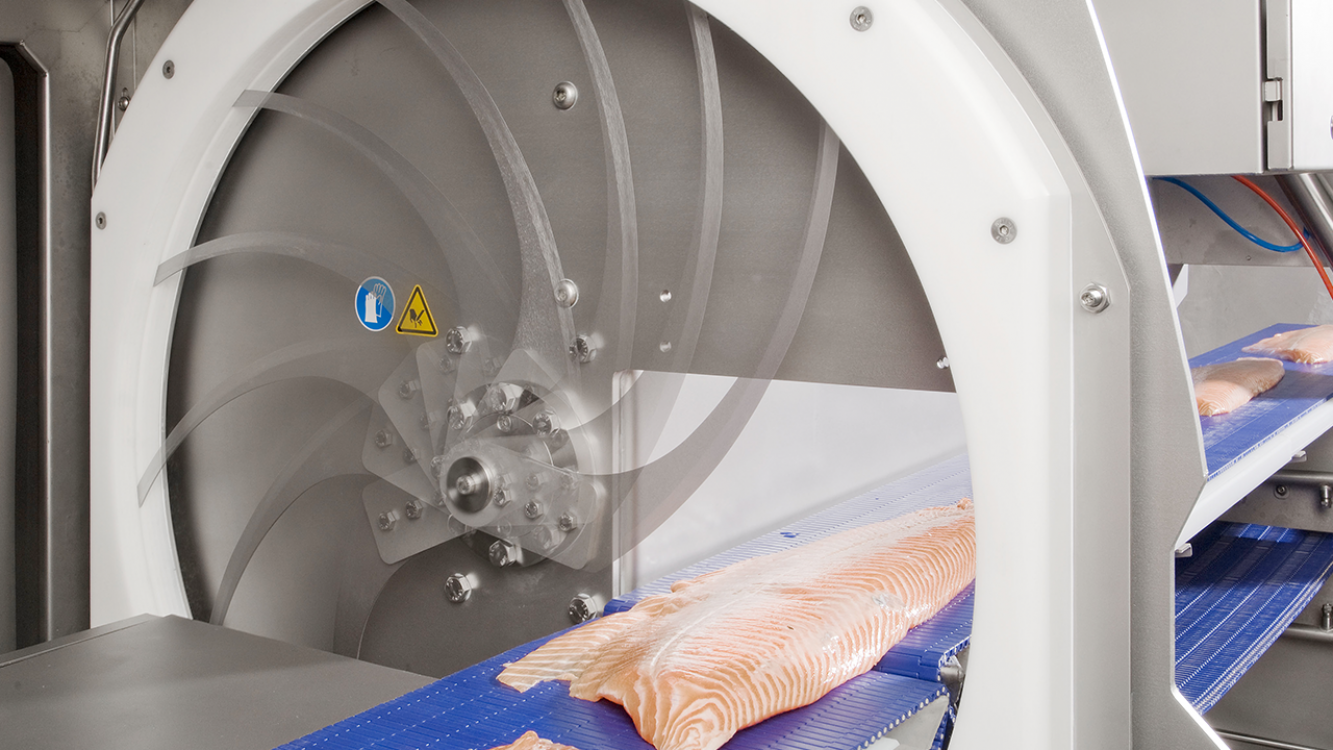

The portioning machine then very rapidly and very precisely cuts the product into the desired portions. Different types of fixation systems and knives can be adapted depending on the product, and in the event of changing product properties, an additional checkweigher can optimise the precision.

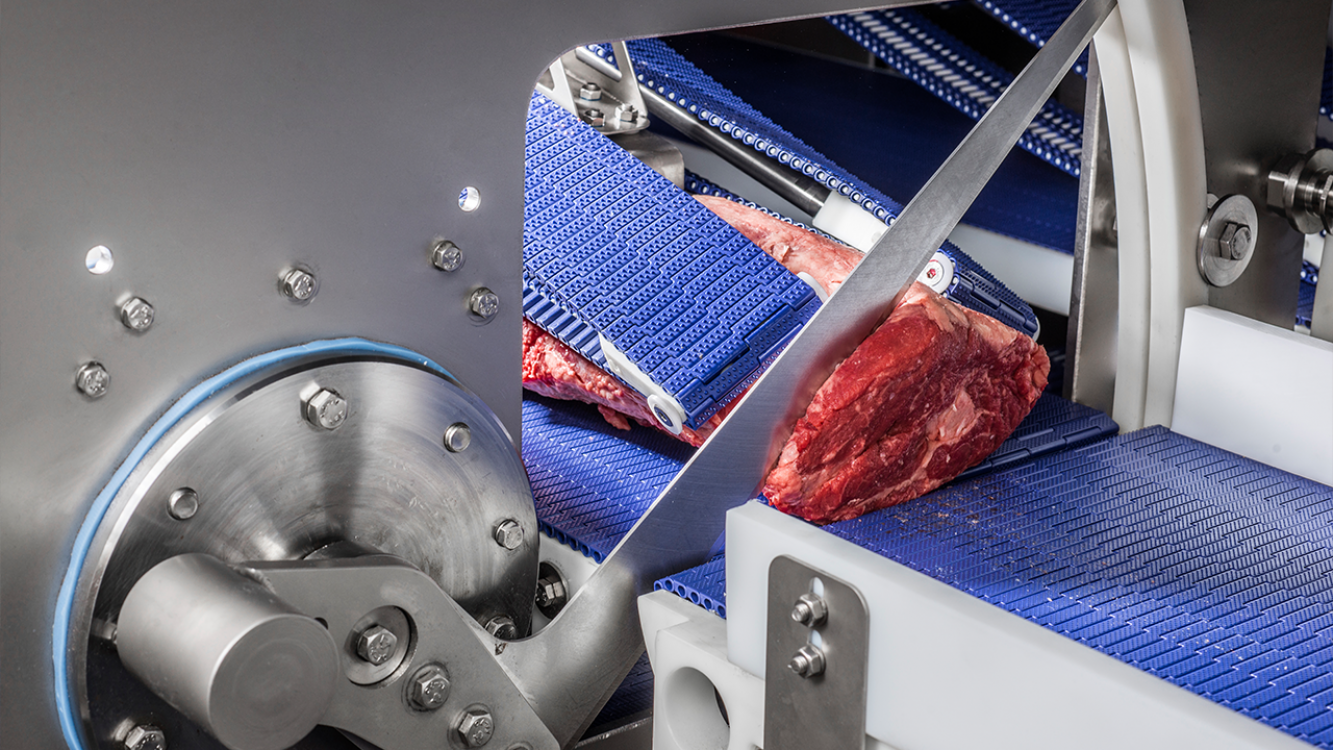

Adjust cutting angle

To give the cut products a natural look, the cutting angle of the PORTIO 1DA can be adjusted from 0° to 30° or 45°. This is a quick, easy process with no use of tools. Cutting at an angle can be performed at the same speed as with the standard PORTIO 1(D).

Portioning machine maintenance

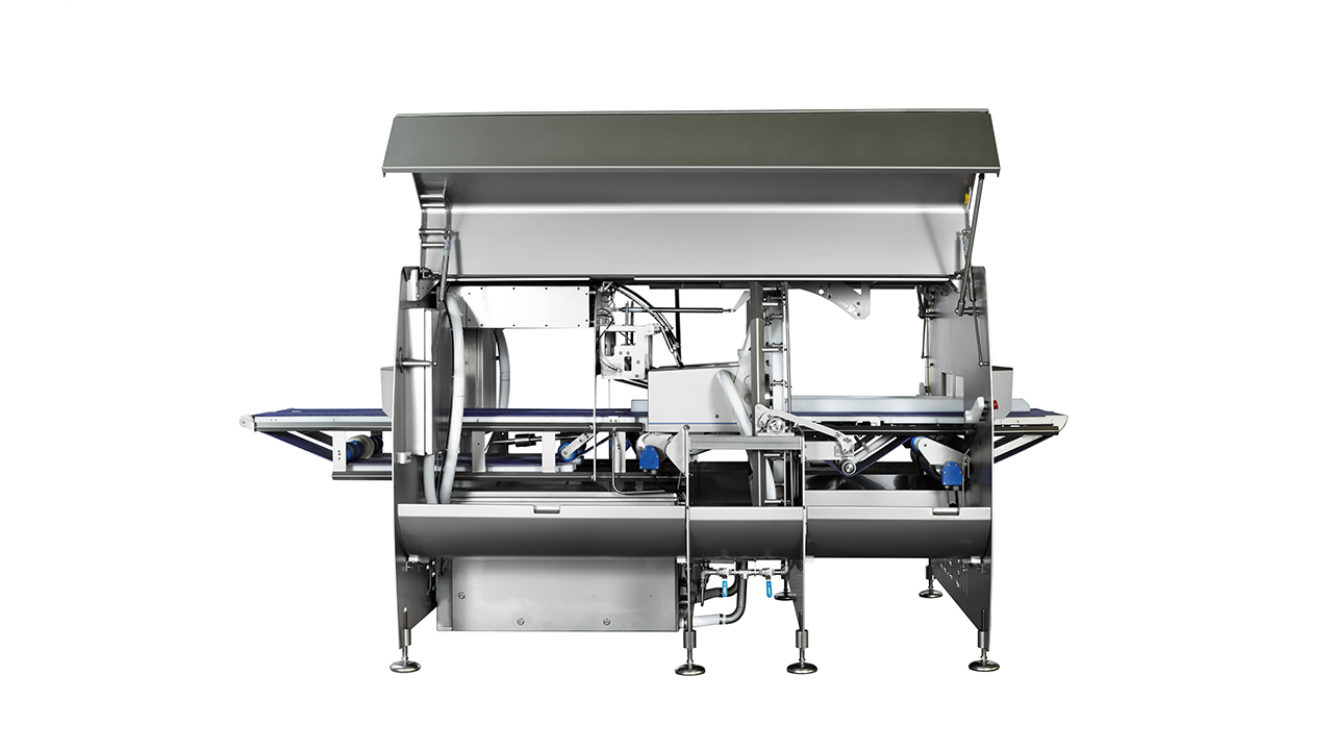

The portioning machine can be fully opened and if desired, the conveyor belts can be removed for separate cleaning. Easily obtainable components have been selected to ensure easy maintenance. This ensures low maintenance costs. In addition, all motors and encoders are located outside the wet zone, ensuring a longer service life.

Specifications

Product dimensions 950 x 240 x 150 mm
Belt width 254 mm
Belt speed Adjustable to 0.6 m/s
Cutting speed Up to 17.5 cuts
Construction Stainless steel AISI 304 and FDA plastics
Belt type Modular
Keyboard IP67 with integrated electronics
Indicator MARELEC Z2 with UTP TCP/IP connection
Software MARELEC P1 standard optimisation software
Power 3 x 380 V + N / 50-60 Hz / 5 kW
Compressed air 6 bar
Cleaning Hygienic construction/CIP integrated
Connections Direct internet connection for remote service

Downloads

Interested? We would like to advise you!

Thomas van Rijn

The MARELEC PORTIO is an ultra-fast intelligent portioning machine designed for cutting fresh products such as fish fillets, whole fish, meat and poultry. As the agent of MARELEC FOOD TECHNOLOGIES in the Netherlands, we supply and maintain a range of weighing, sorting and portioning systems from this Belgian manufacturer active in over 30 countries.

Mechanical engineering in the food industry

Jansen Techniek specialises in custom mechanical engineering for the food industry. We’re always on the move, and develop solutions aimed at optimising the production processes for our customers every day. Alongside MARELEC machines, we supply other systems including conveyor belts, box tippers, flow weighers and stackers.

Almost every system we construct is unique. Tailored entirely to your situation.
