Waterjet Cutter Portio Jet

Waterjet Portion Cutter
Watch the video
Portioning boneless meat
Such as poultry and salmon filets
Predetermined customized shapes
While maintaining fixed weights
Intelligent cutting algorithm
For the optimum cutting pattern

Description

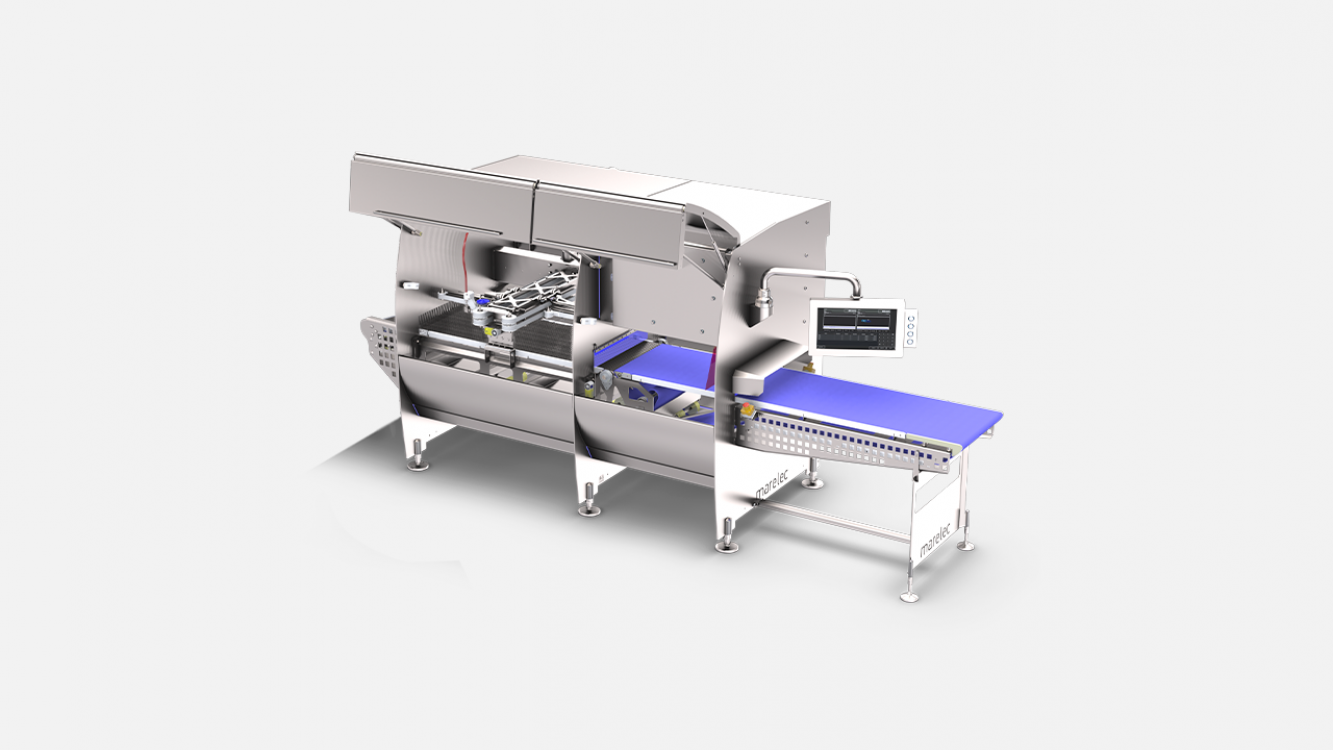

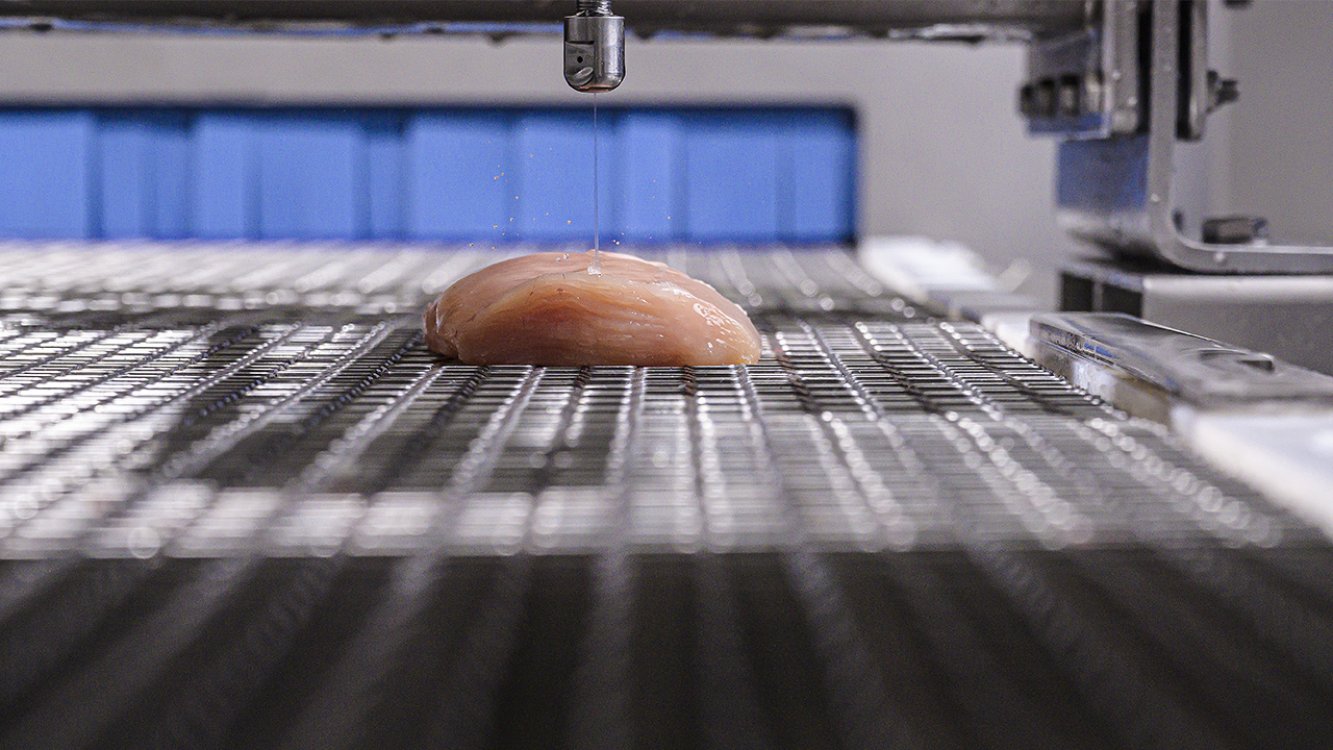

The MARELEC PORTIO JET is a state-of-the-art waterjet cutter based on more than 15 years successful experience in portioning. The waterjet cutter is designed to portion boneless poultry and fish products such as chicken breast, boneless leg meat and fish fillets into predetermined customized shapes while maintaining fixed weights.

Typical applications include:

  • Cutting chicken fillets into fixed-weight portions, cubes or strips,
  • Trimming and portioning boneless leg meat into steaks or thigh patty,

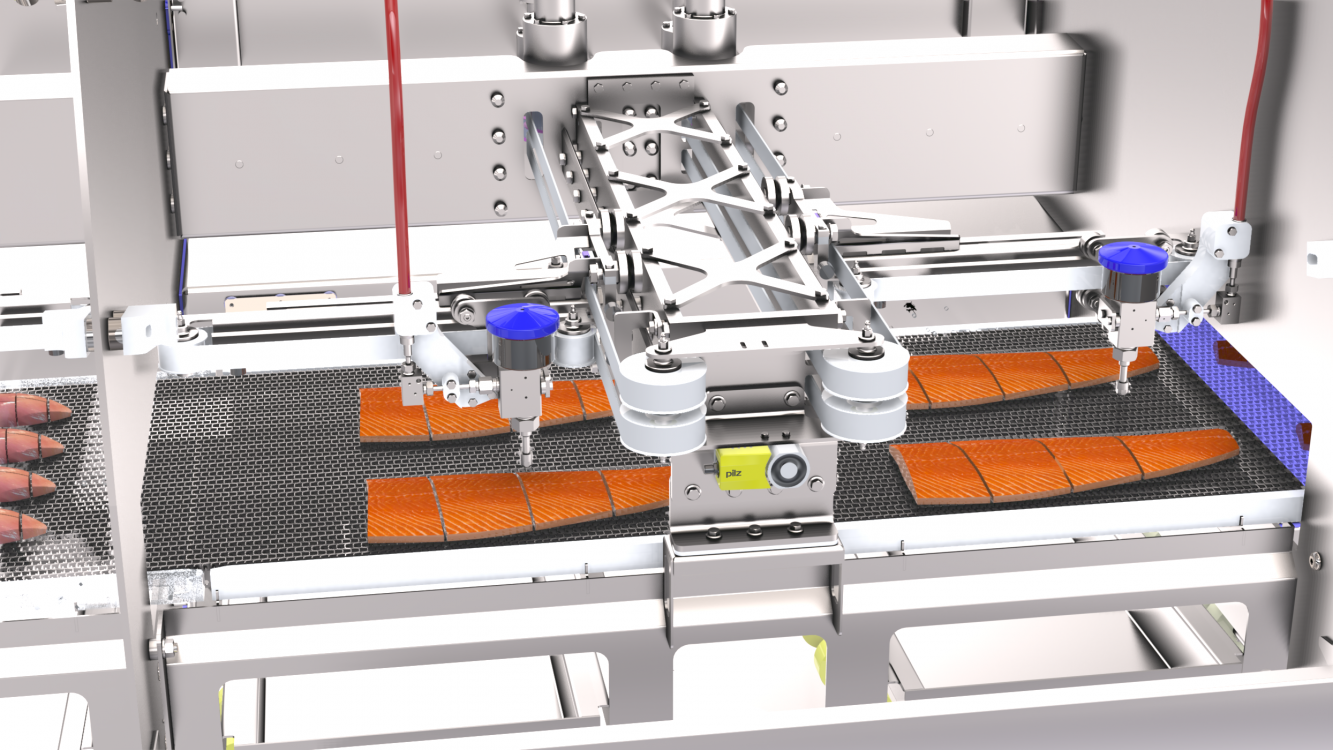

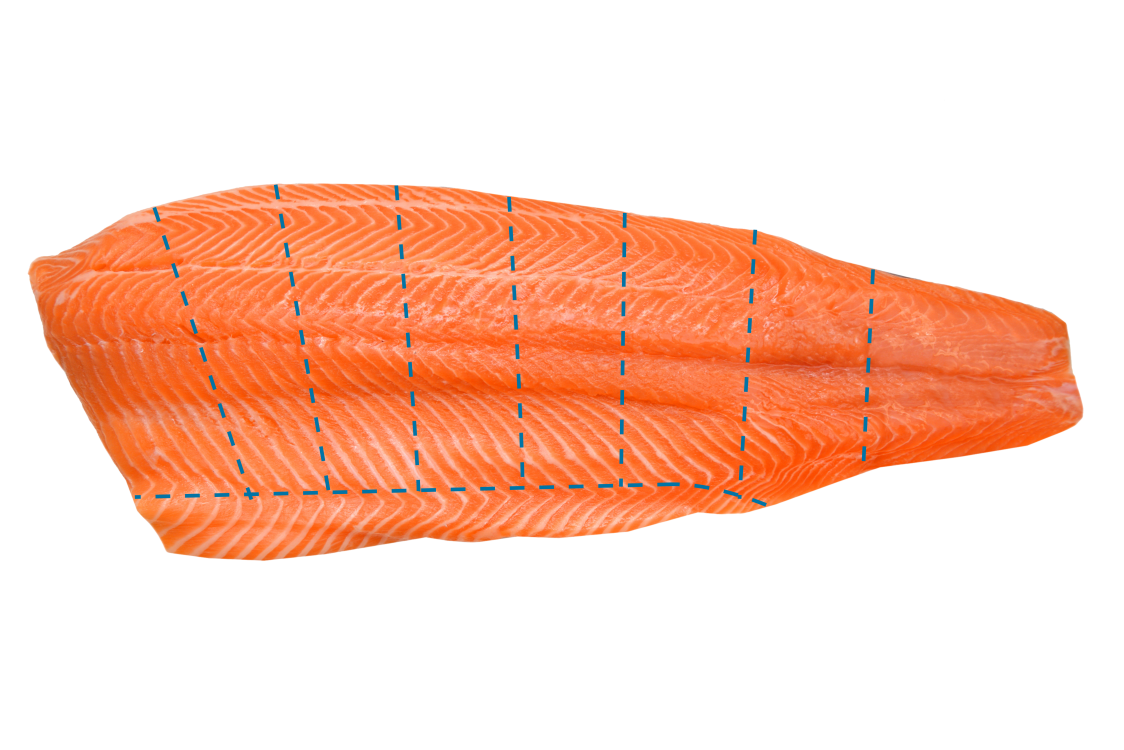

  • Cutting salmon filets into fixed-weight loin portions, belly trim and tail section,
  • Portioning whitefish fillets into several fixed-weight portions,
  • And cutting by-products into strips and cubes.

Portioning with maximum yield

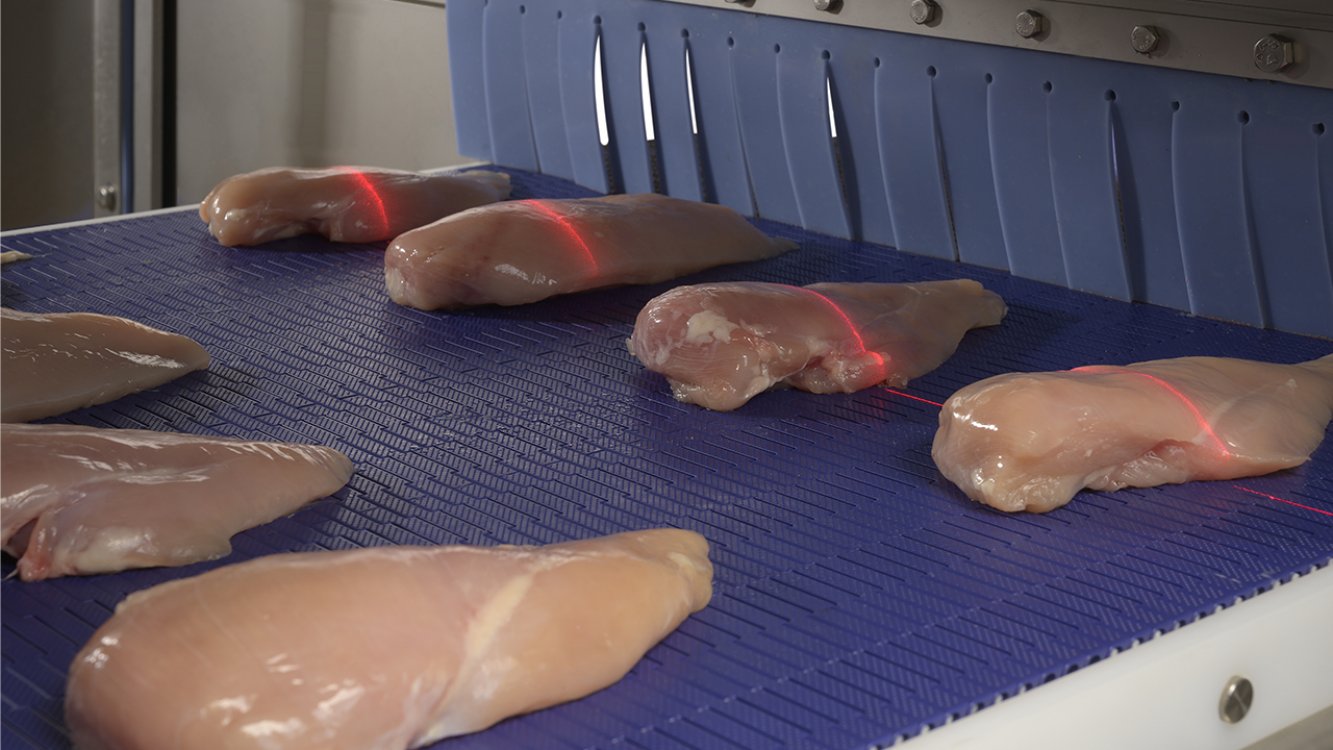

The camera and laser combination scans to the highest accuracy and the intelligent cutting algorithm calculates the optimum cutting pattern. By marking which cuts have priority over others the portioning software will determine the cutting pattern creating the most value.

Matrix Processing Software

The MATRIX J software collects all production data from the PORTIO JET and allows it to generate production reports for each shift or program and to trace changes at machine level. MATRIX J software enables users to remotely take programs offline and monitor the status of the machine status using an event log.


Other Features

  • Intuitive programming and fast and easy fine-tuning of programs for maximum yields.

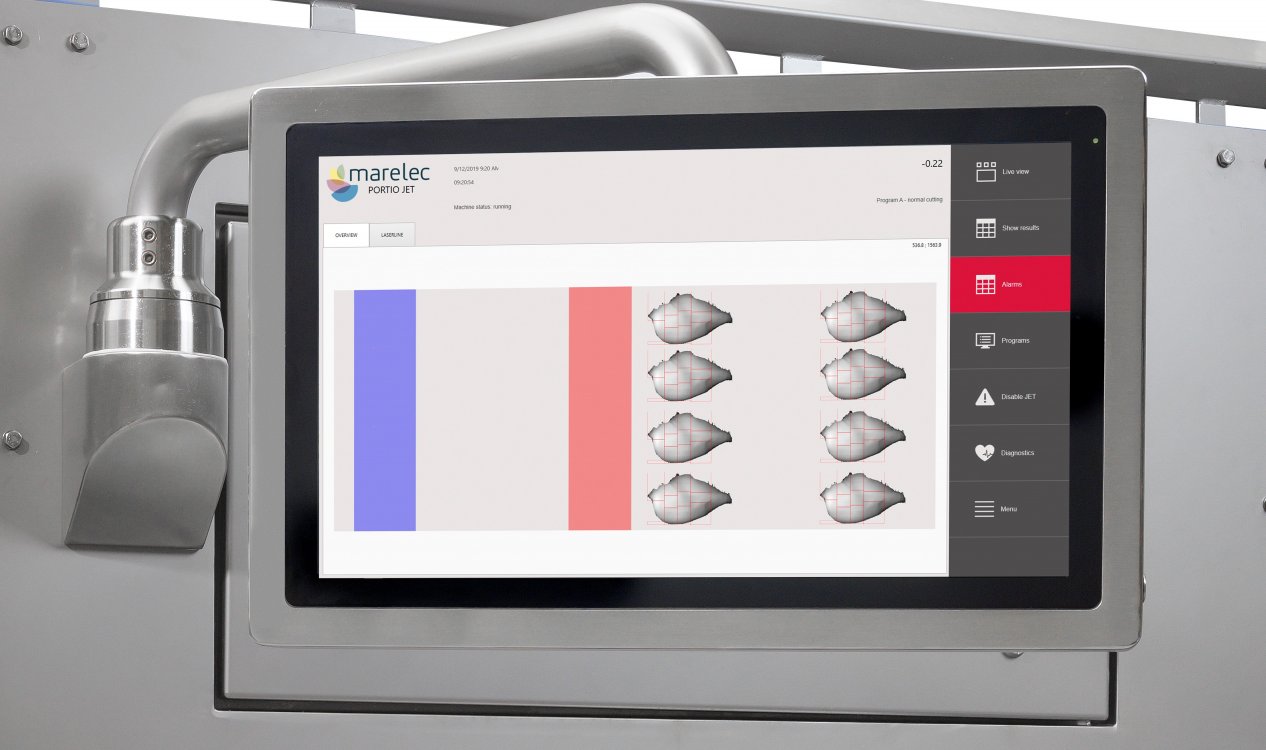

  • Cutting patterns are visible on the screen with thickness and weight indications of every portion.

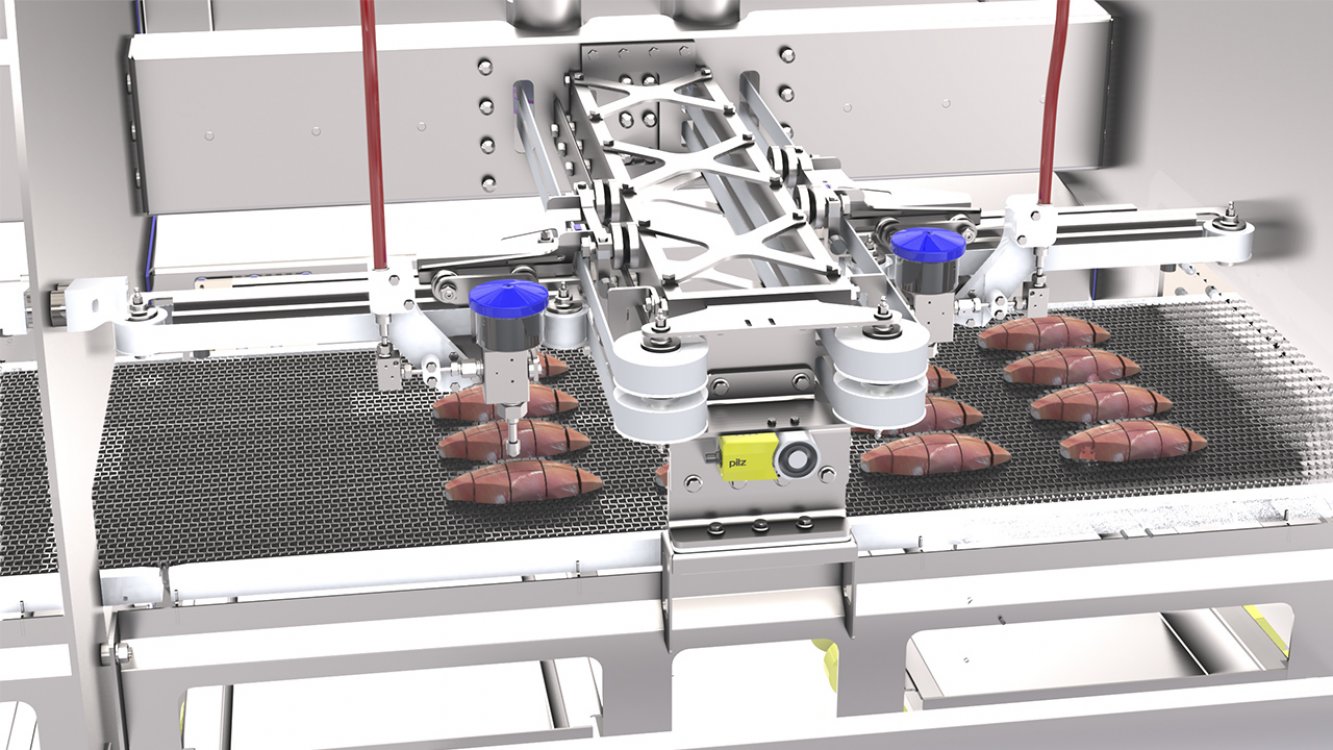

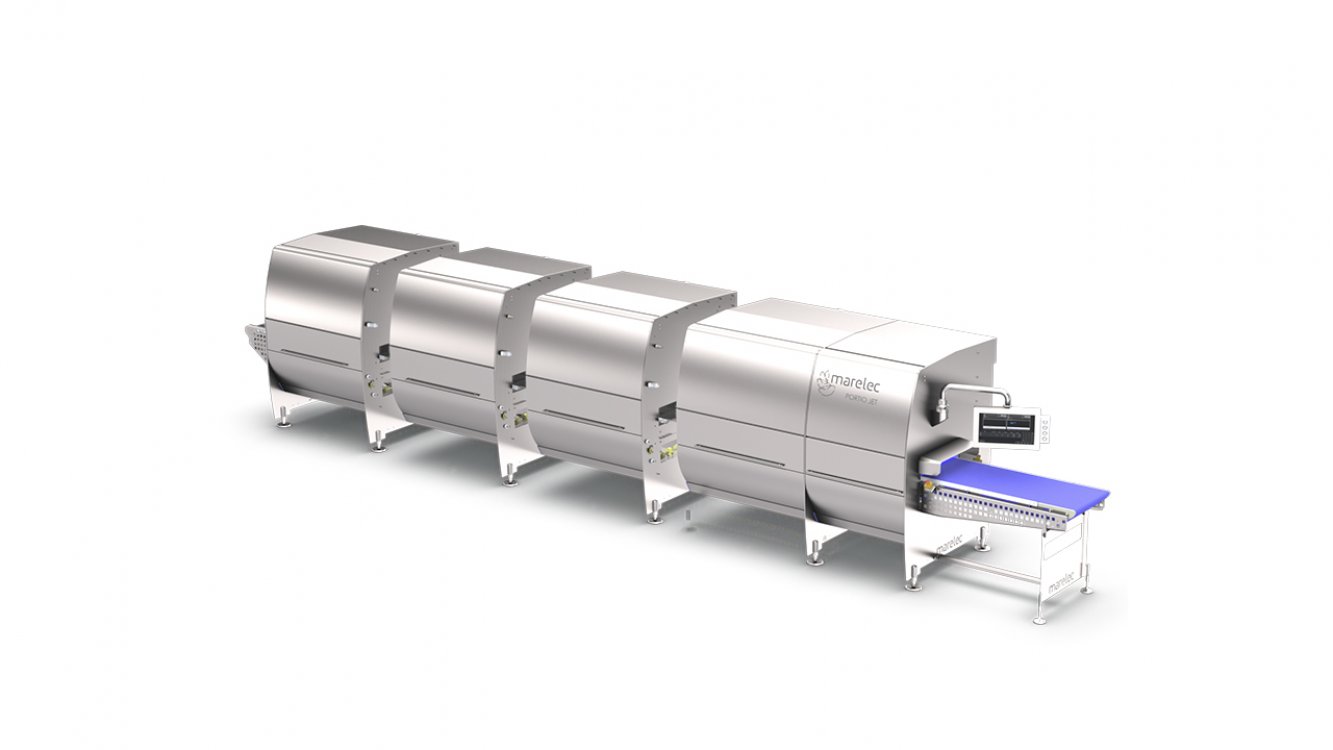

  • Base unit with 1 scanning station and 2 waterjet stations can be extended up to 8 cutting stations
  • The open structure of the portioning machine allows to pressure wash and disinfect the entire in- and outside.

Specifications

Lanes 1 or 2
Cameras 2 top cameras
Belt width 600mm / 23,6 inch
Max. product dimensions 800 x 580 x 70 mm / 31,5 x 22,8 x 2,75 inch
MAx. pressure 3800bar / optional 6000bar
Max. cutting rate Depending on application and amount of cutting stations

Interested? We would like to advise you!

De MARELEC PORTIO JET is een ultramodern waterstraalsnijder. De waterstraalsnijder is ontworpen om gevogelte en visproducten zonder been, zoals kipfilet, beenvlees zonder bot en visfilets, te portioneren in vooraf bepaalde vormen met behoud van vaste gewichten.

MACHINEBOUW VOEDINGSMIDDELENINDUSTRIE

Jansen Techniek is gespecialiseerd in maatwerk machinebouw voor de voedingsmiddelenindustrie. Wij zijn voortdurend in beweging en ontwikkelen elke dag nieuwe oplossingen om de productieprocessen van onze klanten te optimaliseren. Naast MARELEC machines leveren wij vele andere systemen waaronder transportbanden, kistenkantelaars, flowwegers en stapelaars.

Bijna elk systeem dat wij bouwen is uniek. Precies op maat voor uw situatie.
